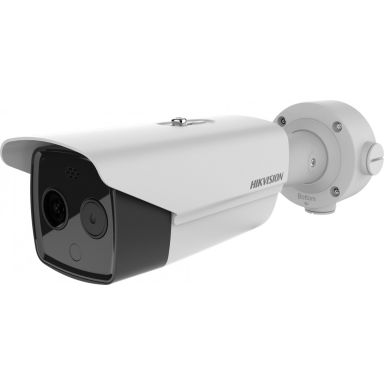

Hikvision DS-2TD2617B-6/PA security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Number of languages

32

Languages support

Multi

Type

IP security camera

Connectivity technology

Wired

Placement supported

Indoor & outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

Form factor

Bullet

Product colour

White

Mounting type

Ceiling/wall

International Protection (IP) code

IP66

Adjustment shutter speed

Auto/Manual

Minimum illumination

0.0018 lx

White balance

ATW, Auto, Daylight, Indoor, Lamp, Manual, Outdoor, Sodium lamp

Camera shutter type

Electronic

Camera shutter speed

1 - 1/100000 s

Lens viewing angle, horizontal

Lens viewing angle, vertical

Progressive scan

Yes

Number of effective pixels (H x V)

2688 x 1520 pixels

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Maximum aperture number

1.1

Fixed focus

Yes

Fixed focal length

8 mm

Night vision

Yes

Night vision distance

40 m

LED type

IR

Noise reduction

Yes

Noise reduction technology

3D noise reduction

Video compression formats

H.264, H.265, MPEG

Maximum resolution

2688 x 1520 pixels

Supported graphics resolutions

176 x 144, 320 x 240, 352 x 288, 384 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520

Supported video modes

240p, 360p, 480p, 540p, 576p, 720p, 768p, 1080p, 1440p, 1520p

Frame rate

30 fps

Video streaming

Yes

Total megapixels

4 MP

Audio input channels

1.0 channels

Audio formats supported

G.711, G.711 A-law, G.711 ?-law, G.726, MP2L2, PCM

Bluetooth

No

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3af

Quality of Service (QoS) support

Yes

Number of users

32 user(s)

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Maximum memory card size

128 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

RS-485 ports

1

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Connectivity technology

Wired

IP address filtering

Yes

HTTPS encryption

Yes

Web browser

Yes

Reset button

Yes

Power source type

DC, PoE

Power consumption (max)

7.5 W

Power consumption (Power over Ethernet (PoE))

8 W

DC-in jack

Yes

DC output voltage

12

Operating temperature (T-T)

Operating relative humidity (H-H)

0 - 95%

Package type

Box

Length

358.3 mm

Width

113.5 mm

Height

115.2 mm

Weight

1.76 kg

Package type

Box

Number of cameras

1

Package type

Box

Manual

No

Cables included

LAN (RJ-45)

Video compression formats

H.264, H.265, MPEG
