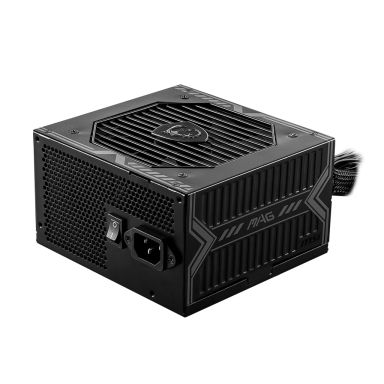

MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
In Stock
|
Call For Price
(0808 189 1246)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
Purpose
PC
Harmonized System (HS) code
84733020
Design
80 PLUS certification
80 PLUS Bronze
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Cooling type
Active
Power
Total power
550 W
Maximum input current (@220V)
4 A
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power Factor Correction (PFC) type
Active
Maximum input current (@110V)
8 A
Combined power (+3.3V)
110 W
Combined power (+12V)
546 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
45.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit
Efficiency
85%
Ports & interfaces
Motherboard power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)
2
EPS power connector (8-pin)
No
PCI Express power connectors (6+2 pin)
2
CPU power connector (4+4 pin)
Yes
ATX Power connector (24-pin)
No
ATX power connector (20+4 pin)
No
Cabling type
Non-Modular
EPS power connector (4+4 pin)
Yes
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Certificates
80 PLUS certification
80 PLUS Bronze
Logistics data
Harmonized System (HS) code
84733020
Other features
Harmonized System (HS) code
84733020
MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
