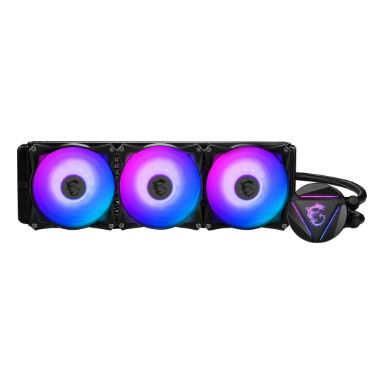

MSI MAG CORELIQUID 360R CPU AIO Cooler ' 360mm Radiator, 3x 120mm ARGB PWM Fan, Adjustable ARGB Drag
Out of Stock
|
Call For Price (0808 189 1246)
Performance
Fan noise level (min)
14.3 dB
Fan noise level (max)
34.3 dB
Pump noise level
18 dB
Pulse-width modulation (PWM) support
Yes
Pump connector
3-pin
Pump's mean time to failure (MTTF)
100000 h
Fan's mean time to failure (MTTF)
70000 h
Minimum air pressure
0.23 mmH2O
Maximum air pressure
2.39 mmH2O
Radiator
Yes
Supported processor sockets
LGA 1150 (Socket H3)- LGA 1151 (Socket H4)- LGA 1155 (Socket H2)- LGA 1156 (Socket H)- LGA 1200 (Socket H5)- LGA 1366 (Socket B)- LGA 2011 (Socket R)- LGA 2011-v3 (Socket R)- LGA 2066- Socket AM2- Socket AM2+- Socket AM3- Socket AM3+- Socket AM4- Socket FM1- Socket FM2- Socket FM2+
Purpose
Processor
Pump motor speed
4000 RPM
Number of fans
3 fan(s)
Minimum airflow (imperial)
21.63 cfm
Maximum airflow
78.73 cfm
Fan speed (min)
500 RPM
Fan speed (max)
2000 RPM
Fan connector
4-pin
Built-in fan
Yes
Technical details
Fan noise level (min)
14.3 dB
Fan noise level (max)
34.3 dB
Pump noise level
18 dB
Pulse-width modulation (PWM) support
Yes
Pump connector
3-pin
Pump's mean time to failure (MTTF)
100000 h
Fan's mean time to failure (MTTF)
70000 h
Minimum air pressure
0.23 mmH2O
Maximum air pressure
2.39 mmH2O
Radiator
Yes
Supported processor sockets
LGA 1150 (Socket H3)- LGA 1151 (Socket H4)- LGA 1155 (Socket H2)- LGA 1156 (Socket H)- LGA 1200 (Socket H5)- LGA 1366 (Socket B)- LGA 2011 (Socket R)- LGA 2011-v3 (Socket R)- LGA 2066- Socket AM2- Socket AM2+- Socket AM3- Socket AM3+- Socket AM4- Socket FM1- Socket FM2- Socket FM2+
Purpose
Processor
Pump motor speed
4000 RPM
Number of fans
3 fan(s)
Minimum airflow (imperial)
21.63 cfm
Maximum airflow
78.73 cfm
Fan speed (min)
500 RPM
Fan speed (max)
2000 RPM
Fan connector
4-pin
Built-in fan
Yes
Power
Fan power consumption
1.8 W
Pump power consumption
4.08 W
Pump voltage
12 V
Pump current
340 mA
Fan voltage
12 V
Fan current
0.15 A
Design
Illumination colour
Red/Green/Blue
Radiator material
Aluminium
Illumination LED
Yes
Type
Internal
Weight & dimensions
Waterblock width
5.73 cm
Waterblock depth
5.23 cm
Waterblock height
1.8 cm
Package weight
2.26 kg
Weight
1.68 kg
Radiator width
39.4 cm
Radiator depth
12 cm
Radiator height
3.2 cm
Tube length
40 cm
Packaging data
Package weight
2.26 kg
MSI MAG CORELIQUID 360R CPU AIO Cooler ' 360mm Radiator, 3x 120mm ARGB PWM Fan, Adjustable ARGB Drag
| Weight | 2.26 kgs |
