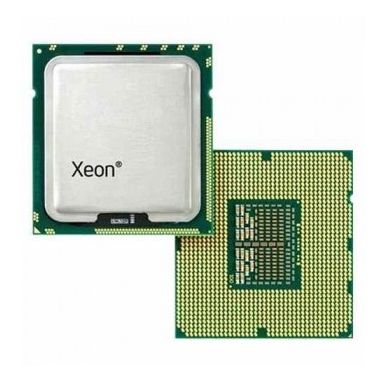

DELL Intel Xeon E5-2683 V4 processor 2.1 GHz 40 MB Smart Cache
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Processor | |
|---|---|
| Processor base frequency | 2.1 GHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Thermal Design Power (TDP) | 120 W |
| Processor cache | 40 MB |
| Processor model | E5-2683V4 |
| Processor threads | 32 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0 - 0 V |
| Processor boost frequency | 3 GHz |
| Stepping | B0 |
| Number of QPI links | 2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® E5 v4 |
| Processor cores | 16 |
| Processor socket | LGA 2011-v3 |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor cache type | Smart Cache |
| Memory | |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics adapter | No |
| On-board graphics adapter model | Not available |
| On-board graphics adapter | No |
| Discrete graphics adapter model | Not available |
| Power | |
| Thermal Design Power (TDP) | 120 W |
| VID Voltage Range | 0 - 0 V |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2 |
| Intel Trusted Execution Technology | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Physical Address Extension (PAE) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 120 W |
| Processor series | Intel Xeon E5-2600 v4 |
| Physical Address Extension (PAE) | 46 bit |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | Smart Cache |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 120 W |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Physical Address Extension (PAE) | 46 bit |
DELL Intel Xeon E5-2683 V4 processor 2.1 GHz 40 MB Smart Cache
