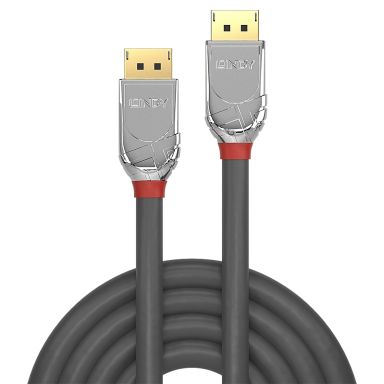

Lindy 2m DisplayPort 1.4 Cable, Cromo Line
In Stock
|
£14.94
£17.93 (Inc. VAT)
Features
Cable shielding
Copper
Product colour
Grey
Cable length
2 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Connector contacts plating
Gold
Cable material
Tinned copper
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
DisplayPort version
1.4
Data transfer rate
32.4 Gbit/s
Maximum resolution
7680 x 4320 pixels
Supported graphics resolutions
7680 x 4320
Certification
RoHS, REACH, UL,
Maximum refresh rate
60 Hz
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Colour sampling
4:2:2
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Contact material
Phosphor copper
Connector material
Gold
Bend radius (min)
7.3 cm
Cable type
Round cable
Nominal attenuation
300kHz-825MHz 5dB,825MHz-2.475GHz 5dB,2.475GHz-4.125GHz 12dB,4.125GHz-5.1GHz 20dB
Operational conditions
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Packaging data
Cable diameter
7.3 mm
Package type
Polybag
Connector 1 dimensions (WxDxH)
19.7 x 12 x 38.9 mm
Connector 2 dimensions (WxDxH)
19.7 x 12 x 38.9 mm
Weight & dimensions
Cable diameter
7.3 mm
Packaging content
Package type
Polybag
Technical details
Harmonized System (HS) code
84733080
Logistics data
Harmonized System (HS) code
84733080
