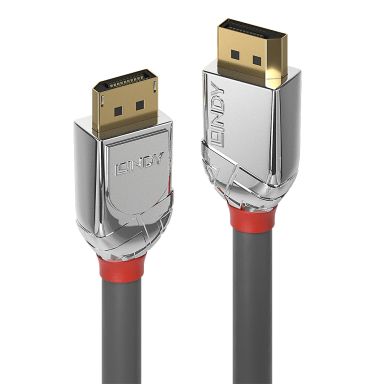

Lindy 3m DisplayPort 1.2 Cable, Cromo Line
In Stock
|
£17.95
£21.54 (Inc. VAT)
Features
Cable shielding
Copper
Product colour
Chrome, Grey
Cable length
3 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Connector contacts plating
Gold
Cable material
Tinned copper
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
DisplayPort version
1.2
Data transfer rate
21.6 Gbit/s
3D
Yes
Maximum resolution
4096 x 2160 pixels
Supported video modes
2160p
Certification
RoHS, REACH, UL
Maximum refresh rate
60 Hz
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Colour sampling
4:4:4
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Contact material
Phosphor bronze
Connector material
Gold
Bend radius (min)
7.3 cm
Cable type
Round cable
Nominal attenuation
300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Operational conditions
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Sustainability
Sustainability certificates
REACH, RoHS
Packaging data
Cable diameter
7.3 mm
Manual
Yes
Package type
Polybag
Connector 1 dimensions (WxDxH)
19.7 x 12 x 38.9 mm
Connector 2 dimensions (WxDxH)
19.7 x 12 x 38.9 mm
Weight & dimensions
Cable diameter
7.3 mm
Packaging content
Manual
Yes
Package type
Polybag
Technical details
Sustainability certificates
REACH, RoHS
Pallet net height
3.89 cm
Harmonized System (HS) code
84733080
Compliance certificates
REACH, RoHS
Supplier features
Product or Article Information Sheet available?
Yes
Logistics data
Harmonized System (HS) code
84733080
Lindy 3m DisplayPort 1.2 Cable, Cromo Line
