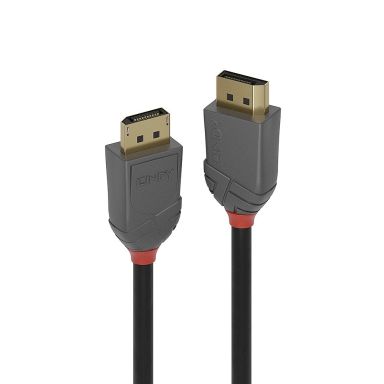

Lindy 5m DisplayPort 1.2 Cable, Anthra Line
In Stock
|
£12.53
£15.04 (Inc. VAT)
Features
Cable shielding
Copper
Product colour
Black, Grey
Cable length
5 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Connector contacts plating
Gold
Cable material
Tinned copper
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
DisplayPort version
1.2
Data transfer rate
21.6 Gbit/s
Maximum resolution
4096 x 2160 pixels
Supported graphics resolutions
4096 x 2160
Supported video modes
2160p
Plug and Play
Yes
Certification
RoHS, REACH, UL
Maximum refresh rate
120 Hz
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Colour sampling
4:2:2
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Contact material
Phosphor bronze
Connector material
Gold
Bend radius (min)
5.84 cm
Cable type
Round cable
Nominal attenuation
100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operational conditions
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Packaging data
Cable diameter
7.3 mm
Package type
Polybag
Quantity per pack
1 pc(s)
Connector 1 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Weight & dimensions
Cable diameter
7.3 mm
Packaging content
Package type
Polybag
Quantity per pack
1 pc(s)
Technical details
Harmonized System (HS) code
84733080
Logistics data
Harmonized System (HS) code
84733080
Lindy 5m DisplayPort 1.2 Cable, Anthra Line
