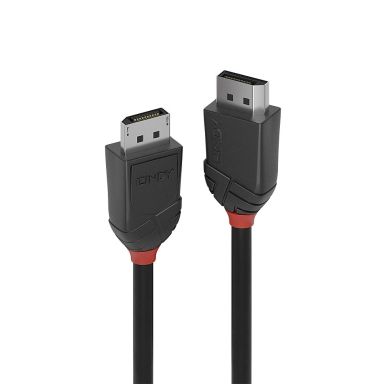

Lindy 1m DisplayPort 1.2 Cable, Black Line
In Stock
|
Call For Price
(0808 189 1246)
Features
Cable shielding
Copper
Product colour
Black
Cable length
1 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Connector contacts plating
Gold
Cable material
Copper
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
30
DisplayPort version
1.2
Data transfer rate
21.6 Gbit/s
Maximum resolution
4096 x 2160 pixels
Supported graphics resolutions
4096 x 2160
Supported video modes
2160p
Plug and Play
Yes
Certification
RoHS, REACH, UL
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Colour sampling
4:4:4
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Contact material
Phosphor bronze
Connector material
Nickel
Bend radius (min)
4.8 cm
Cable type
Round cable
Nominal attenuation
300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Operational conditions
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Sustainability
Sustainability certificates
RoHS
Packaging data
Cable diameter
6 mm
Package type
Polybag
Quantity per pack
1 pc(s)
Connector 1 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Weight & dimensions
Cable diameter
6 mm
Packaging content
Package type
Polybag
Quantity per pack
1 pc(s)
Technical details
Sustainability certificates
RoHS
Harmonized System (HS) code
84733080
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
84733080
