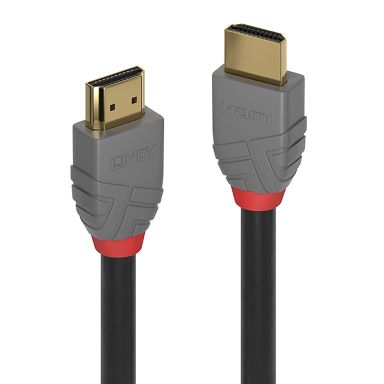

Lindy 5m High Speed HDMI Cable, Anthra Line

Connector 1 form factor

Straight

Connector 2 form factor

Straight

HDMI Ethernet channel

Yes

Product colour

Black, Grey

Cable length

5 m

Connector 1

HDMI Type A (Standard)

Connector 2

HDMI Type A (Standard)

Connector 1 gender

Male

Connector 2 gender

Male

Connector contacts plating

Gold

Cable material

Copper

AWG wire size

30

Data transfer rate

18 Gbit/s

Supported graphics resolutions

4096 x 2160

Supported video modes

2160p

Plug and Play

Yes

Certification

RoHS, REACH, UL, ATC

Quantity per pack

1 pc(s)

Cable jacket material

Polyvinyl chloride (PVC)

Colour sampling

4:4:4

Bending radius (min)

4.8 cm

Contact material

Phosphor copper

Connector material

Gold

Connector housing material

Polyvinyl chloride (PVC)

Cable type

Round cable

Shield material

Copper

Nominal attenuation

300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

Operating temperature (T-T)

-10 - 80 °C

Storage temperature (T-T)

-10 - 80 °C

Package type

Polybag

Cable diameter

6 mm

Connector 1 dimensions (WxDxH)

20 x 34.2 x 10.9 mm

Connector 2 dimensions (WxDxH)

20 x 34.2 x 10.9 mm

Package type

Polybag

Quantity per pack

1 pc(s)

Sustainability certificates

RoHS

Compliance certificates

RoHS

Harmonized System (HS) code

84733080
