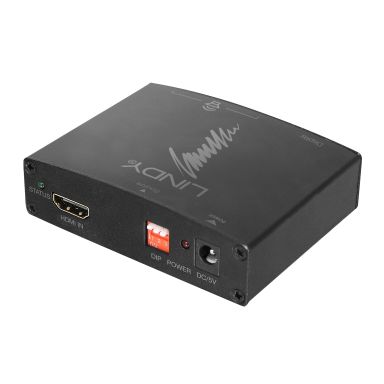

Lindy HDMI 4K30 Audio Extractor
In Stock
|
$46.35
$55.62 (Inc. VAT)
Inputs
HDMI in
1
DC-in jack
Yes
Outputs
Number of HDMI outputs
1
S/PDIF out port
Yes
Digital audio optical out
1
Digital audio coaxial out
1
Audio (L/R) out
1
Technical details
Audio recording formats
LPCM
Maximum resolution
4096 x 2160 pixels
Package width
202 mm
Package height
55 mm
Product colour
Black
Certification
CE, UKCA, FCC, RoHS, REACH
Maximum data transfer rate
10200 Mbit/s
Housing material
Metal
Sustainability certificates
REACH, RoHS
HDCP version
1.4
HDCP
Yes
HDMI version
1.4
HDMI pass-through
Yes
Chipset
EP91A2E
CEC pass-through
Yes
Output impedance
100 ?
Input impedance
100 ?
Supported sample rates
192 kHz
Supported chroma subsampling
4:4:4
Audio codecs
Dolby Digital 2/5.1, DTS-HD
Accuracy
0.1 dB
Harmonized System (HS) code
85176990
Compliance certificates
REACH, RoHS
Power
Power consumption (typical)
5 W
Power note
5.5/2.1mm DC
Weight & dimensions
Width
65 mm
Depth
88 mm
Height
24 mm
Package depth
144 mm
Package weight
250 g
Package width
202 mm
Package height
55 mm
Weight
118 g
Operational conditions
Operating temperature (T-T)
-15 - 55 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Colour
Product colour
Black
Certificates
Certification
CE, UKCA, FCC, RoHS, REACH
Packaging data
Package depth
144 mm
Package weight
250 g
Package width
202 mm
Package height
55 mm
Quantity
1
Cables included
DC to USB Type-A
Manual
Yes
Package type
Box
Logistics data
Harmonized System (HS) code
85176990
Lindy HDMI 4K30 Audio Extractor
