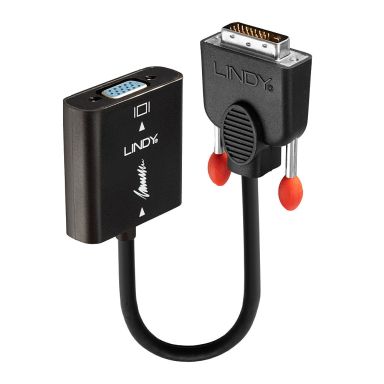

Lindy DVI-D to VGA Converter

Chipset

CH7101

Product colour

Black

Cable length

0.1 m

Connector 1

DVI-D

Connector 2

VGA (D-Sub)

Connector 1 gender

Male

Connector 2 gender

Female

Jacket material

Polyvinyl chloride (PVC)

Data transfer rate

4.95 Gbit/s

Maximum resolution

1920 x 1200 pixels

Supported graphics resolutions

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

Supported video modes

1080p

HDCP

No

Certification

CE, UKCA, FCC, RoHS, REACH

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Dual Link DVI

No

Bend radius (min)

5.5 cm

Connector housing material

Polyvinyl chloride (PVC)

Operating temperature (T-T)

-20 - 80 °C

Storage temperature (T-T)

-20 - 80 °C

Operating relative humidity (H-H)

20 - 90%

Cable diameter

5.5 mm

Weight

62 g

Package width

160 mm

Package depth

160 mm

Package height

20 mm

Package weight

77 g

Connector 1 dimensions (WxDxH)

40 x 52.25 x 16.5 mm

Connector 2 dimensions (WxDxH)

44 x 45 x 15 mm

Package width

160 mm

Package depth

160 mm

Package height

20 mm

Package type

Polybag

Package weight

77 g

Quantity per pack

1 pc(s)

Harmonized System (HS) code

84733080

Package type

Polybag

Quantity per pack

1 pc(s)

Harmonized System (HS) code

84733080
