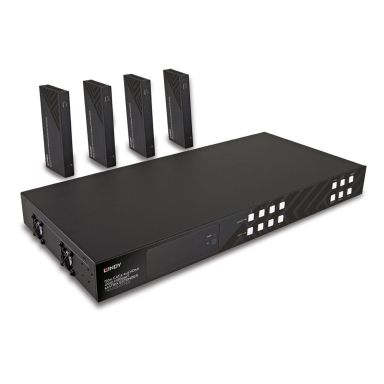

Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender
In Stock
|
$1547.55
$1857.06 (Inc. VAT)
Features
Material
Metal
HDCP
Yes
Signal-to-Noise Ratio (SNR)
90 dB
On/off switch
Yes
Certification
California Proposition 65
Audio formats supported
LPCM
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat6
Maximum transfer distance
150 m
Supported video modes
1080p
Bandwidth
18 Gbit/s
Product colour
Black
HDCP pass-through
Yes
EDID management
Yes
HDCP version
2.2
Infrared (IR) frequency range
20 - 60 kHz
High Dynamic Range (HDR) supported
Yes
Technical details
Material
Metal
HDCP
Yes
Signal-to-Noise Ratio (SNR)
90 dB
On/off switch
Yes
Certification
California Proposition 65
Package type
Box
Audio formats supported
LPCM
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat6
Maximum transfer distance
150 m
Supported video modes
1080p
Bandwidth
18 Gbit/s
Product colour
Black
Connectivity technology
Wired
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Warranty period
2 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Ports & interfaces
3.5 mm (1/8-inch) out
Yes
3.5 mm (1/8-inch) in
Yes
HDBaseT port
Yes
Audio RCA outputs
4
RS-232 input ports
2
RJ-45 output ports
4
HDMI in
4
Number of HDMI outputs
5
HDMI version
2.0
Audio (L/R) out
4
Connectivity technology
Wired
Digital audio coaxial out
4
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power requirements
60 W
Power source type
AC
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
440 mm
Receiver dimensions (WxDxH)
140 x 65 x 18 mm
Package depth
401 mm
Height
45 mm
Depth
200 mm
Package width
510 mm
Package height
98 mm
Weight
5.31 kg
Package weight
6.33 kg
Packaging data
Package type
Box
Package depth
401 mm
Package width
510 mm
Package height
98 mm
Package weight
6.33 kg
Packaging content
Packaging content
4x4 HDBaseT Extender Matrix - Transmitter
4 x HDBaseT Receivers
5 x IR Emitter Cable, 1.5m
5 x IR Receiver Cable, 1.5m
10 x Mounting Ears & Screws
4 x 3-Pin Terminal Block
4 x 5-Pin Terminal Block
RS-232 Male to Female cable, 1.5m
4 x mains cables (EU, UK, US & AUS), 1.5m
Lindy Manual
Manual
Yes
Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender
