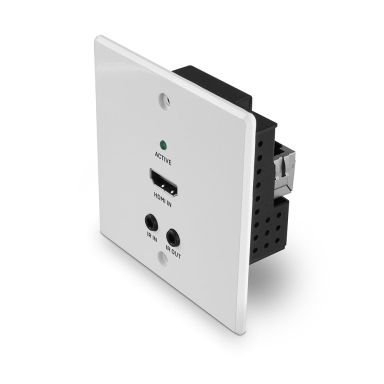

Lindy 70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter
In Stock
|
$210.53
$252.64 (Inc. VAT)
Features
Material
Metal
HDCP
Yes
Wall mountable
Yes
Maximum refresh rate
60 Hz
On/off switch
Yes
Certification
California Proposition 65
Type
AV transmitter
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat6
Maximum transfer distance
70 m
Bandwidth
18 Gbit/s
Product colour
Black, White
Chipset
VS010
Extended display identification data (EDID)
Yes
RS-232 pass-through
Yes
Bidirectional
Yes
HDCP version
2.2
Infrared (IR) frequency range
20 - 60 kHz
Technical details
Material
Metal
HDCP
Yes
Wall mountable
Yes
Maximum refresh rate
60 Hz
On/off switch
Yes
Certification
California Proposition 65
Package type
Box
Type
AV transmitter
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat6
Maximum transfer distance
70 m
Bandwidth
18 Gbit/s
Product colour
Black, White
Connectivity technology
Wired
Special features
Bi-directional IR, PoC
Quantity per pack
1 pc(s)
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA
Warranty period
2 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA
Ports & interfaces
3.5 mm (1/8-inch) out
Yes
3.5 mm (1/8-inch) in
Yes
HDBaseT port
Yes
RS-232 output ports
1
RJ-45 output ports
1
HDMI in
1
HDMI version
2.0
Connectivity technology
Wired
Power
Output current
1 A
Operating voltage (transmitter)
24 V
Power requirements
24VDC 1A
Power source type
DC
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
86 mm
Package depth
95 mm
Height
86 mm
Depth
38 mm
Package width
152 mm
Package height
133 mm
Weight
390 g
Package weight
540 g
Packaging data
Package type
Box
Package depth
95 mm
Package width
152 mm
Package height
133 mm
Package weight
540 g
Quantity per pack
1 pc(s)
Packaging content
Packaging content
HDMI Transmitter
Multi-country Power Supply (UK, EU, US & AUS)
IR Emitter Cable, 1.5m
IR Receiver Cable, 1.5m
3-Pin Terminal Block
2-Pin Terminal Block
Lindy Manual
Manual
Yes
