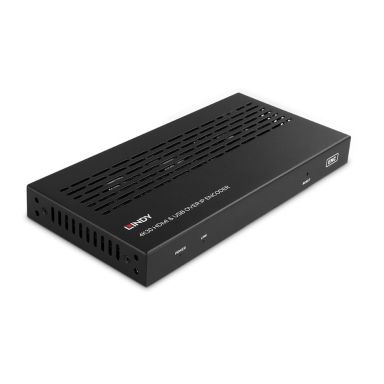

Lindy 4K30 HDMI and USB over IP System - Encoder

HDCP

Yes

Maximum refresh rate

30 Hz

Type

AV transmitter

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6

Maximum transfer distance

100 m

Bandwidth

18 Gbit/s

Product colour

Black

Supported network protocols

IP

HDCP version

2.2

Infrared (IR) frequency range

20 - 60 kHz

HDCP

Yes

Maximum refresh rate

30 Hz

Package type

Box

Ethernet LAN

Yes

Type

AV transmitter

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6

Maximum transfer distance

100 m

Bandwidth

18 Gbit/s

Product colour

Black

Connectivity technology

Wired

Supported network protocols

IP

Quantity per pack

1 pc(s)

Sustainability compliance

Yes

Compliance certificates

CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

3.5 mm (1/8-inch) out

Yes

3.5 mm (1/8-inch) in

Yes

Remote (IR) output

1

Remote (IR) input

1

USB ports quantity

1

Serial ports quantity

1

Serial interface type

RS-232

USB connector type

USB Type-B

Ethernet LAN

Yes

RJ-45 input ports

1

HDMI in

1

Number of HDMI outputs

1

HDMI version

2

DC-in jack

Yes

Connectivity technology

Wired

Power over Ethernet (PoE)

Yes

Output current

1:00 AM

Operating voltage

12 V

Power source type

DC

Storage relative humidity (H-H)

20 - 90%

Operating relative humidity (H-H)

20 - 90%

Storage temperature (T-T)

Operating temperature (T-T)

Width

204 mm

Package depth

185 mm

Height

21.5 mm

Depth

134 mm

Package width

245 mm

Package height

75 mm

Weight

780 g

Package weight

1.02 kg

Package type

Box

Package depth

185 mm

Package width

245 mm

Package height

75 mm

Package weight

1.02 kg

Quantity per pack

1 pc(s)

Mounting kit

Yes

Cables included

IR

AC adapter included

Yes

Manual

Yes

Included power plug types

AU, EU, UK, US
