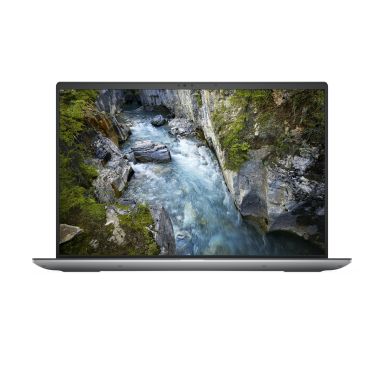

DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro Grey
In Stock
|
$3452.75
$4143.30 (Inc. VAT)
Design
Product type
Mobile workstation
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Intel® vPro Platform Eligibility
Yes
Display
HD type
Full HD+
Pixel density
142 ppi
Panel type
IPS
LED backlight
Yes
Display brightness
500 cd/m²
Contrast ratio (typical)
1300:1
Touchscreen
No
Display resolution
1920 x 1200 pixels
Display diagonal
40.6 cm (16")
Anti-glare screen
Yes
Maximum refresh rate
60 Hz
RGB colour space
DCI-P3
Colour gamut
100%
Native aspect ratio
16:10
Processor
Processor generation
Intel® Core Ultra (Series 1)
Processor cache type
Smart Cache
Processor cache
24 MB
Processor model
165H
Processor boost frequency
5 GHz
Processor cores
16
Processor threads
22
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor base power
28 W
Maximum turbo power
115 W
Efficient-core base frequency
0.9 GHz
Performance-core base frequency
1.4 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Performance-core Max Turbo Frequency
5 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-core Base Frequency
700 MHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Low Power Efficient-cores
2
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Maximum frequency NPU
1.4 GHz
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, FP32, Int8
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Memory form factor
On-board
Internal memory
32 GB
Internal memory type
LPDDR5x-SDRAM
Maximum internal memory
32 GB
Memory channels
Dual-channel
Memory data transfer rate
7467 MT/s
Storage
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
Total storage capacity
1 TB
Total SSDs capacity
1 TB
SSD performance class
40
NVMe
Yes
M.2 SSD size
2280 (22 x 80 mm)
Graphics
Discrete graphics card
Yes
Discrete graphics card memory
8 GB
On-board graphics card family
Intel Arc Graphics
On-board graphics card
Yes
On-board graphics card model
Intel Arc Graphics
Discrete graphics card model
NVIDIA RTX 2000 Ada
Discrete graphics memory type
GDDR6
On-board GPU manufacturer
Intel
Audio
Number of microphones
2
Number of built-in speakers
4
Speakers manufacturer
Waves
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
2.07 MP
Front camera resolution
1920 x 1080 pixels
Video capturing speed
30 fps
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Optical drive
Optical drive type
No
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN controller model
Intel Wi-Fi 7 BE200
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Antenna type
2x2
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
HDMI ports quantity
1
HDMI version
2.1
Combo headphone/mic port
Yes
USB Power Delivery
Yes
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Performance
Gyroscope
Yes
Proximity sensor
Yes
Ambient light sensor
Yes
Accelerometer
Yes
Hall sensor
Yes
Keyboard
Pointing device
Touchpad
Numeric keypad
No
Keyboard backlit
Yes
Keyboard language
UK English
Software
Operating system language
German, Dutch, English, French, Italian
Operating system architecture
64-bit
Trial software
No Microsoft Office Licence Included - 30 day Trial Offer Only
Operating system installed
Windows 11 Pro
Technical details
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Discrete graphics card memory
8 GB
Processor special features
Intel® vPro Platform Eligibility
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery capacity
99.5 Wh
Battery recharge time
3 h
Battery voltage
11.55 V
Fast charging
Yes
Battery charge indicator
Yes
Battery weight
363 g
Power
AC adapter power
165 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
Security
Password protection
Yes
Cable lock slot type
Wedge
Trusted Platform Module (TPM)
Yes
Fingerprint reader
Yes
Cable lock slot
Yes
Trusted Platform Module (TPM) version
2.0
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Sustainability
Total carbon footprint
246 kg of CO2e
Weight & dimensions
Width
353.7 mm
Depth
240.3 mm
Height (front)
2.05 cm
Height (rear)
2.22 cm
Weight
2.03 kg
Packaging data
Cables included
AC
Other features
Ambient light sensor
Yes
WLAN controller model
Intel Wi-Fi 7 BE200
On-board graphics card
Yes
Anti-glare screen
Yes
Sensors
Proximity sensor
Yes
Ambient light sensor
Yes
Accelerometer
Yes
Carbon footprint
Total carbon footprint
246 kg of CO2e
Total carbon emissions (w/o Use phase)
210 kg of CO2e
PAIA version
GaBi verison1
Carbon emissions (Energy Usage)
36 kg of CO2e
Carbon emissions (Manufacturing)
200 kg of CO2e
Carbon emissions (Logistics)
7 kg of CO2e
Carbon emissions (End-of-Life)
2 kg of CO2e
Packaging content
Cables included
AC
DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro Grey
