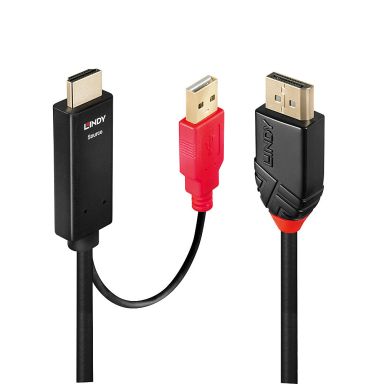

Lindy 3m HDMI to DisplayPort Adapter Cable

Cable shielding

Aluminium braid

DisplayPort version

1.2

Product colour

Black, Red

Cable length

3 m

Connector 1

HDMI + USB Type-A

Connector 2

DisplayPort

Connector 1 gender

Male

Connector 2 gender

Male

Connector contacts plating

Gold

Jacket material

Polyvinyl chloride (PVC)

AWG wire size

30

Data transfer rate

10.2 Gbit/s

Maximum resolution

4096 x 2160 pixels

Supported video modes

1080p, 2160p

Plug and Play

Yes

Certification

CE, UKCA, FCC, RoHS, REACH, UL, California Proposition 65

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Maximum refresh rate

30 Hz

Colour sampling

4:4:4

Bend radius (min)

5.5 cm

Conductor material

Tinned copper

Nominal attenuation

300kHz-825MHz 5dB 825MHz-2.475GHz 5dB 2.475GHz-4.125GHz 12dB 4.125GHz-5.1GHz 20dB

Cable type

Round cable

Connector material

Gold

Connector housing material

Acrylonitrile butadiene styrene (ABS)

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 80 °C

Sustainability certificates

RoHS

Sustainability certificates

RoHS

Harmonized System (HS) code

84733080

Compliance certificates

RoHS

Cable diameter

5.5 mm

Connector 1 dimensions (WxDxH)

48 x 20.9 x 11.3 mm

Connector 2 dimensions (WxDxH)

37.5 x 15.8 x 8 mm

Connector 3 dimensions (WxDxH)

36.4 x 20 x 9.4 mm

Package type

Polybag

Quantity per pack

1 pc(s)

Package type

Polybag

Quantity per pack

1 pc(s)

Harmonized System (HS) code

84733080
