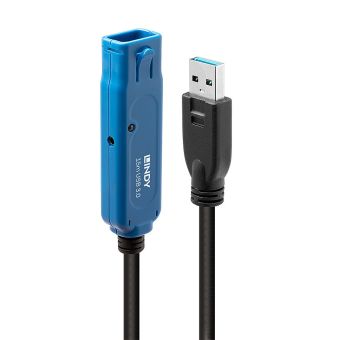

Lindy 15m USB 3.0 Active Extension Cable
In Stock
|
$118.79
$142.55 (Inc. VAT)
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
24/24/20
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB A
Connector 2
USB A
Cable length
15 m
Connector contacts plating
Gold
Maximum data transfer rate
5000 Mbit/s
Product colour
Black
Certification
CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Cable type
Round cable
Connector 1 gender
Male
Connector 2 gender
Female
Conductor material
Tinned copper
Cable jacket material
Polyvinyl chloride (PVC)
Connector material
Nickel
Contact material
Brass
Connector housing material
Plastic
Transmission medium
Twisted pair
Nominal attenuation
0.064MHz - 0.08dB .256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
Maximum data transfer rate
5 Gbit/s
Cable diameter
7 mm
Weight
1 kg
Quantity per pack
1 pc(s)
Power
Power note
2.5/0.7mm DC Connector
Weight & dimensions
Cable diameter
7 mm
Cable length
15 m
Weight
1 kg
Bend radius (min)
3.6 cm
Connector 1 dimensions (WxDxH)
15 x 49 x 8 mm
Connector 2 dimensions (WxDxH)
20 x 80 x 13 mm
Package width
280 mm
Package depth
180 mm
Package height
10 mm
Package weight
1.35 kg
Package type
Box
Packaging data
Package width
280 mm
Package depth
180 mm
Package height
10 mm
Package weight
1.35 kg
Package type
Box
Quantity per pack
1 pc(s)
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Ports & interfaces
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB A
Connector 2
USB A
Connector contacts plating
Gold
Data transmission
Maximum data transfer rate
5000 Mbit/s
Technical details
Product colour
Black
Harmonized System (HS) code
84733080
Certificates
Certification
CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Other features
Package type
Box
Product colour
Black
Cable type
Round cable
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Harmonized System (HS) code
84733080
Lindy 15m USB 3.0 Active Extension Cable
