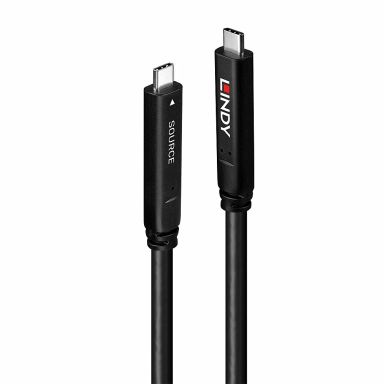

Lindy 8m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable
In Stock
|
$220.80
$264.96 (Inc. VAT)
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
21
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB C
Connector 2
USB C
Cable length
8 m
Maximum data transfer rate
5000 Mbit/s
Product colour
Black
Connector 1 gender
Male
Connector 2 gender
Male
USB Power Delivery
Yes
Cable jacket material
Polyvinyl chloride (PVC)
USB Power Delivery up to
60 W
Connector shielding
Yes
Connector shield material
Copper
Connector housing material
Plastic
Nominal attenuation
<10dB/km@850nm,<8dB/km@1300nm
Maximum resolution
3840 x 2160 pixels
DisplayPort version
1.4
USB Type-C DisplayPort Alternate Mode
Yes
Maximum data transfer rate
5 Gbit/s
Output voltage
20 V
Output current (max)
3 A
Cable diameter
6.5 mm
Weight
610 g
Quantity per pack
1 pc(s)
Power
Output voltage
20 V
Output current (max)
3 A
Weight & dimensions
Cable diameter
6.5 mm
Cable length
8 m
Weight
610 g
Bend radius (min)
10 cm
Package width
240 mm
Package depth
240 mm
Package height
65 mm
Package weight
770 g
Package type
Box
Packaging data
Package width
240 mm
Package depth
240 mm
Package height
65 mm
Package weight
770 g
Package type
Box
Quantity per pack
1 pc(s)
Packaging content
Manual
Yes
Quantity per pack
1 pc(s)
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Operational conditions
Operating temperature (T-T)
-10 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Ports & interfaces
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB C
Connector 2
USB C
Data transmission
Maximum data transfer rate
5000 Mbit/s
Technical details
Product colour
Black
Manual
Yes
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Other features
Package type
Box
Product colour
Black
Operating temperature (T-T)
-10 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Lindy 8m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable
