Moxa ICF-1150I-M-SC serial converter/repeater/isolator RS-232 Fiber (SC)
In Stock
|
Call For Price (0808 189 1246)
Technical details
Wavelength
850 nm
TX output
-5 dB
Transmission distance (multi-mode)
5 km
RX sensitivity
-20 dB
RS-485 signals
RxD+, RxD-, SGND, TxD+, TxD-
RS-422 signals
RxD+, RxD-, SGND, TxD+, TxD-
Over current protection
Yes
Output interface
Fiber (SC)
Mounting
DIN-rail
Isolation
2 kV
Host interface
RS-232
Fiber optic connector
SC
Electrostatic Discharge (ESD) protection
15 kV
Baud rate
921.6 Kbit/s
Weight & dimensions

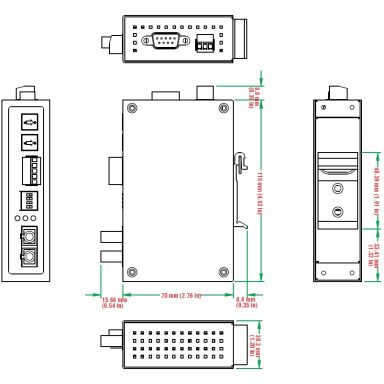

Dimensions (WxDxH)
30.3 x 70 x 115 mm
Power
Power consumption
163 mA
Input voltage
12 - 48 V
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Certification
UL, CE, FCC, ATEX, UL/cUL
Indication
LED indicators
Yes
Moxa ICF-1150I-M-SC serial converter/repeater/isolator RS-232 Fiber (SC)
| Weight | 1.00 kgs |
