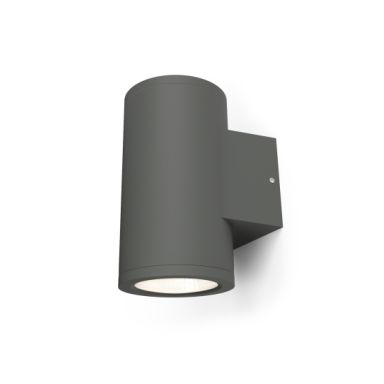

4lite LED Up/Down Light
In Stock
|
$30.39
$36.47 (Inc. VAT)
Design
Mounting type
Wall mounting
Suitable for outdoor areas
Facade, Garden
Type
Outdoor wall lighting
Product colour
Graphite
International Protection (IP) code
IP54
Protection class
I
Country of origin
China
Housing material
Aluminium, Glass
Light source type
Directional
Lumen depreciation
L80 50,000h
Light source
4L2/2301/LS
LED chip manufacturer
Edison
Displacement factor
0.0015
Diffuser material
Glass
Colour consistency (SDCM)
6
Chromaticity coordinate Y
0.38
Chromaticity coordinate X
0.38
Mechanical impact protection code
IK05
Lamps
Power factor
0.9
Luminous efficacy
19 lm/W
Color Rendering Index (CRI)
80
Bulb type
LED
Total power
12 W
Luminous flux
230 lm
Colour temperature
4000 K
Beam angle (max)
60°
Bi-directional light beams
Yes
Useful luminous flux
380 lm
R9 colour rendering index
16
Lumen maintenance factor
0.96%
Lamp survival factor
0.9%
IES Luminous flux
228.5 lm
IES Luminous efficacy
19 lm/W
Ergonomics
Operating temperature (T-T)
-20 - 50 °C
Dimmable
No
Power
Power source type
AC
AC input voltage
220 - 240 V
AC input frequency
50-60 Hz
Energy consumption per 1000 hours
12 kWh
Inrush current
0.19 A
Operating current
0.096 A
IES power
12 W
Forward voltage
18 - 24 V
Input voltage
220 - 240 V
Weight & dimensions
Width
80 mm
Depth
80 mm
Height
138 mm
Weight
588 g
Packaging data
Package width
90 mm
Package depth
120 mm
Package height
150 mm
Package weight
657 g
Quantity per pack
1 pc(s)
Performance
Beam angle (max)
60°
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Technical details
Dimmable
No
Sustainability compliance
Yes
Sustainability certificates
UKCA, CE
Features
Bi-directional light beams
Yes
Sustainability
Sustainability compliance
Yes
Sustainability certificates
UKCA, CE
Other features
Operating temperature (T-T)
-20 - 50 °C
Bi-directional light beams
Yes
Lumen depreciation
L80 50,000h
Light source
4L2/2301/LS
LED chip manufacturer
Edison
Displacement factor
0.0015
Chromaticity coordinate Y
0.38
Chromaticity coordinate X
0.38
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Country of origin
China
Master (outer) case width
260 mm
Master (outer) case length
280 mm
Master (outer) case height
320 mm
Master (outer) case gross weight
8 kg
Products per master (outer) case
12 pc(s)
Harmonized System (HS) code
9405119090
4lite LED Up/Down Light
