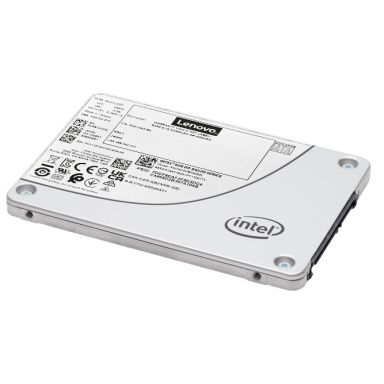

Lenovo 4XB7A17102 internal solid state drive 2.5" 960 GB Serial ATA III 3D TLC NAND
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
SSD capacity
960 GB
Memory type
3D TLC NAND
Data transmission
Random write (4KB)
44000 IOPS
Random read (4KB)
85000 IOPS
Write latency
36 µs
Read latency
36 µs
Data transfer rate
6 Gbit/s
Security
Security algorithms
256-bit AES
Endurance
Mean time between failures (MTBF)
2000000 h
Certificates
Certification
FCC Title 47- Part 15B- Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1- 2nd Edition- 2014-10-14 CSA C22.2 No. 60950-1-07- 2nd Edition- 2014-010 UL/CSA 62368-1- 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 VCCI EFUP
Performance
Interface
Serial ATA III
Component for
Server/workstation
Hot-swap
Yes
SSD capacity
960 GB
Security algorithms
256-bit AES
S.M.A.R.T. support
Yes
Memory type
3D TLC NAND
Random write (4KB)
44000 IOPS
Random read (4KB)
85000 IOPS
Mean time between failures (MTBF)
2000000 h
Write latency
36 µs
Read latency
36 µs
Hardware encryption
Yes
Data transfer rate
6 Gbit/s
Design
Component for
Server/workstation
Certification
FCC Title 47- Part 15B- Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1- 2nd Edition- 2014-10-14 CSA C22.2 No. 60950-1-07- 2nd Edition- 2014-010 UL/CSA 62368-1- 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 VCCI EFUP
SSD form factor
2.5"
Features
Interface
Serial ATA III
Component for
Server/workstation
Hot-swap
Yes
SSD capacity
960 GB
Security algorithms
256-bit AES
S.M.A.R.T. support
Yes
Memory type
3D TLC NAND
Random write (4KB)
44000 IOPS
Random read (4KB)
85000 IOPS
Mean time between failures (MTBF)
2000000 h
Write latency
36 µs
Read latency
36 µs
Hardware encryption
Yes
Data transfer rate
6 Gbit/s
Certification
FCC Title 47- Part 15B- Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1- 2nd Edition- 2014-10-14 CSA C22.2 No. 60950-1-07- 2nd Edition- 2014-010 UL/CSA 62368-1- 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 VCCI EFUP
SSD form factor
2.5"
Harmonized System (HS) code
84717070
Power
Power consumption (write)
3 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Operating shock
1000 G
Non-operating shock
1000 G
Operating vibration
2.17 G
Maximum operating altitude
3050 m
Technical details
Interface
Serial ATA III
Hot-swap
Yes
S.M.A.R.T. support
Yes
Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Operating shock
1000 G
Non-operating shock
1000 G
Operating vibration
2.17 G
Maximum operating altitude
3050 m
Hardware encryption
Yes
SSD form factor
2.5"
Weight & dimensions
Package width
174 mm
Package depth
133 mm
Package height
63 mm
Package weight
434 g
Width
70 mm
Weight
70 g
Height
7 mm
Depth
100 mm
Packaging data
Package width
174 mm
Package depth
133 mm
Package height
63 mm
Package weight
434 g
Lenovo 4XB7A17102 internal solid state drive 2.5" 960 GB Serial ATA III 3D TLC NAND
