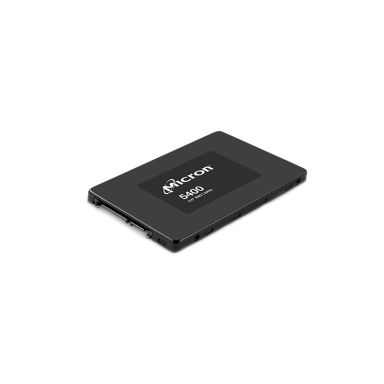

Lenovo 4XB7A82290 internal solid state drive 2.5" 960 GB Serial ATA III 3D TLC NAND

SSD capacity

960 GB

Memory type

3D TLC NAND

Random write (4KB)

65000 IOPS

Random read (4KB)

95000 IOPS

Write latency

35 µs

Read latency

170 µs

Mean time between failures (MTBF)

3000000 h

Certification

Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B- RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47- Part 15 Class B UL/cUL: approval to UL-60950-1- 2nd Edition- IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia- New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B- KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B- IEC60950/EN60950- RoHS (Resolution 2017 No. 139)

Interface

Serial ATA III

Component for

Server/workstation

Hot-swap

Yes

SSD capacity

960 GB

S.M.A.R.T. support

Yes

Memory type

3D TLC NAND

Random write (4KB)

65000 IOPS

Random read (4KB)

95000 IOPS

Mean time between failures (MTBF)

3000000 h

Write latency

35 µs

Read latency

170 µs

Component for

Server/workstation

Certification

Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B- RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47- Part 15 Class B UL/cUL: approval to UL-60950-1- 2nd Edition- IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia- New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B- KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B- IEC60950/EN60950- RoHS (Resolution 2017 No. 139)

SSD form factor

2.5"

Interface

Serial ATA III

Component for

Server/workstation

Hot-swap

Yes

SSD capacity

960 GB

S.M.A.R.T. support

Yes

Memory type

3D TLC NAND

Random write (4KB)

65000 IOPS

Random read (4KB)

95000 IOPS

Mean time between failures (MTBF)

3000000 h

Write latency

35 µs

Read latency

170 µs

Certification

Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B- RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47- Part 15 Class B UL/cUL: approval to UL-60950-1- 2nd Edition- IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia- New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B- KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B- IEC60950/EN60950- RoHS (Resolution 2017 No. 139)

SSD form factor

2.5"

Power consumption (write)

3.1 W

Power consumption (read)

2.8 W

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Non-operating shock

1500 G

Interface

Serial ATA III

Hot-swap

Yes

S.M.A.R.T. support

Yes

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Non-operating shock

1500 G

SSD form factor

2.5"

Width

70 mm

Weight

70 g

Height

7 mm

Depth

100 mm
