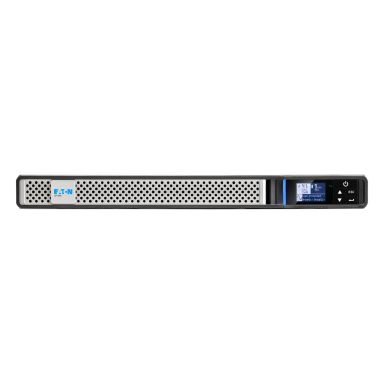

Eaton 5P850IRG2BS uninterruptible power supply (UPS) Line-Interactive 680 W 4 AC outlet(s)
In Stock
|
Call For Price (0808 189 1246)
Power
Output power
680 W
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Output operation voltage (max)
240 V
Efficiency
98%
Performance
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Noise level
35 dB
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Output power
680 W
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Output operation voltage (max)
240 V
Efficiency
98%
Noise level
35 dB
Input frequency
47/70 Hz
Heat dissipation
307 BTU/h
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
4 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Serial ports quantity
1
USB port type
USB Type-B
Battery
Number of batteries supported
4
Battery voltage
6 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Design
Rack capacity
1U
Form factor
Tower
Product colour
Black, Silver
Certification
TUV
IEC/EN 62040-1
IEC/EN 62040-2
EAC
cTUVus
UL 1778
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
14 kg
Width
438 mm
Height
43.2 mm
Depth
509 mm
Certificates
Certification
TUV
IEC/EN 62040-1
IEC/EN 62040-2
EAC
cTUVus
UL 1778
Eaton 5P850IRG2BS uninterruptible power supply (UPS) Line-Interactive 680 W 4 AC outlet(s)
| Length | 50.90 cm |
| Width | 43.80 cm |
| Height | 4.32 cm |
| Weight | 17.00 kgs |
