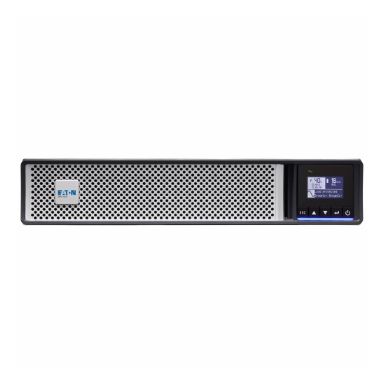

Eaton 5PX1000IRT2UG2BS uninterruptible power supply (UPS) Line-Interactive 1 kVA 1000 W 8 AC outlet(
In Stock
|
$941.04
$1129.25 (Inc. VAT)
Power
Output power factor
1
Output power
1000 W
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Power factor
1
Output power capacity
1 kVA
Performance
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Power protection features
Overdischarge
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Output power factor
1
Output power
1000 W
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Power protection features
Overdischarge
Power factor
1
Noise level
40 dB
Output power capacity
1 kVA
Input frequency
47/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
USB port type
USB Type-B
Battery
Number of batteries supported
4
Battery voltage
12 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Automatic battery test
Yes
Design
Form factor
Rackmount
Product colour
Black- Silver
Certification
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm Ukr UKCA
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
CE- ENERGY STAR- REACH- RoHS
Weight & dimensions
Weight
19.8 kg
Width
498 mm
Height
240 mm
Depth
585 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Certificates
Certification
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm Ukr UKCA
Packaging content
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Eaton 5PX1000IRT2UG2BS uninterruptible power supply (UPS) Line-Interactive 1 kVA 1000 W 8 AC outlet(
