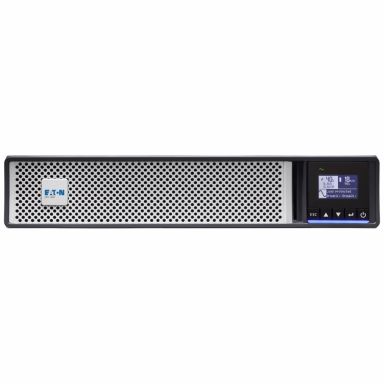

Eaton 5PX1500IRT2UG2BS uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1500 W 8 AC outle
0 Reviews
| Add your review
In Stock
|
£858.37
£1030.04 (Inc. VAT)
| Power | |
|---|---|
| Output power factor | 1 |
| Output power | 1500 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Power factor | 1 |
| Output power capacity | 1.5 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 40 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 1 |
| Output power | 1500 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Power protection features | Overdischarge |
| Power factor | 1 |
| Noise level | 40 dB |
| Output power capacity | 1.5 kVA |
| Input frequency | 47/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 4 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black- Silver |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | CE- ENERGY STAR- REACH- RoHS |
| Weight & dimensions | |
| Weight | 22.5 kg |
| Width | 498 mm |
| Height | 240 mm |
| Depth | 585 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable- Serial- USB cable |
| Rack mount kit | Yes |
| Certificates | |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable- Serial- USB cable |
| Rack mount kit | Yes |
