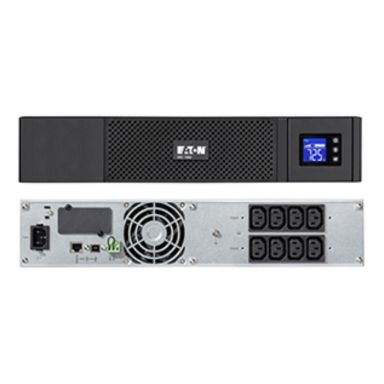

Eaton 5SC1000IR uninterruptible power supply (UPS) Line-Interactive 1000 VA 700 W 8 AC outlet(s)
In Stock
|
Call For Price (0808 189 1246)
Specifications
Power
Output frequency regulation
45-55 Hz (50Hz system) 55-65Hz (60Hz system)
Output power
700 W
Input operation voltage (min)
184 V
Input operation voltage (max)
276 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output power capacity
1000 VA
Performance
UPS topology
Line-Interactive
Power protection features
Overdischarge
Noise level
45 dB
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Output frequency regulation
45-55 Hz (50Hz system) 55-65Hz (60Hz system)
Output power
700 W
Input operation voltage (min)
184 V
Input operation voltage (max)
276 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Power protection features
Overdischarge
Noise level
45 dB
Output power capacity
1000 VA
Input frequency
45/55 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Design
Rack capacity
2U
Form factor
Rackmount
Product colour
Black
Safety
IEC / EN 62040-1 UL 1778
Certification
CE CB report (TÂÃ
ÂV)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output voltage
230 V
Output frequency
50/60 Hz
Weight & dimensions
Weight
15 kg
Width
440 mm
Height
86.2 mm
Depth
405 mm
Certificates
Safety
IEC / EN 62040-1 UL 1778
Certification
CE CB report (TÂÃ
ÂV)
Other features
Output voltage
230 V
Eaton 5SC1000IR uninterruptible power supply (UPS) Line-Interactive 1000 VA 700 W 8 AC outlet(s)
| Length | 40.50 cm |
| Width | 44.00 cm |
| Height | 8.62 cm |
| Weight | 15.00 kgs |
