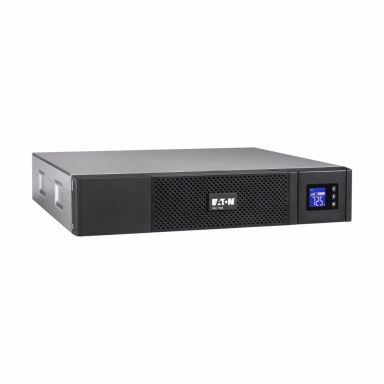

Eaton 5SC1000IRBS uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 8 AC outlet(s)
In Stock
|
$668.90
$802.68 (Inc. VAT)
Power
Output power factor
0.7
Output power
700 W
Input operation voltage (min)
184 V
Input operation voltage (max)
276 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Efficiency
96%
Power factor
0.7
Output power capacity
1 kVA
Performance
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Power protection features
Overdischarge
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Output power factor
0.7
Output power
700 W
Input operation voltage (min)
184 V
Input operation voltage (max)
276 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Efficiency
96%
Power protection features
Overdischarge
Power factor
0.7
Noise level
40 dB
Output power capacity
1 kVA
Input frequency
45/65 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Serial ports quantity
1
USB port type
USB Type-B
Battery
Number of batteries supported
2
Battery voltage
12 V
Battery capacity
9 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
5 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Form factor
Rackmount
Product colour
Black- Silver
Certification
TUV UL 1778 IEC/EN 62040-1 IEC/EN 62040-2 EAC cTUVus
Operational conditions
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
CE
Weight & dimensions
Weight
15.4 kg
Width
509 mm
Height
43.2 mm
Depth
438 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Certificates
Certification
TUV UL 1778 IEC/EN 62040-1 IEC/EN 62040-2 EAC cTUVus
Packaging content
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Eaton 5SC1000IRBS uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 8 AC outlet(s)
