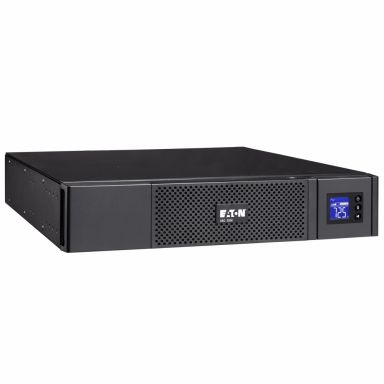

Eaton 5SC2200IRTBS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 9 AC outlet(s)
In Stock
|
$1051.15
$1261.38 (Inc. VAT)
Power
Output power factor
0.9
Output power
1980 W
Input operation voltage (min)
184 V
Input operation voltage (max)
276 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Efficiency
97%
Power factor
0.9
Output power capacity
2.2 kVA
Ports & interfaces
Cable length
1.8 m
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
9 AC outlet(s)
AC outlet types
C13 coupler- C19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
USB port type
USB Type-A
Performance
UPS topology
Line-Interactive
Waveform
Sine
Number of output phases
1
Number of input phases
1
Power protection features
Overdischarge
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Waveform
Sine
Number of output phases
1
Number of input phases
1
Output power factor
0.9
Output power
1980 W
Input operation voltage (min)
184 V
Input operation voltage (max)
276 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Efficiency
97%
Power protection features
Overdischarge
Power factor
0.9
Noise level
40 dB
Output power capacity
2.2 kVA
Input frequency
45/65 Hz
Battery
Number of batteries supported
4
Battery voltage
12 V
Battery capacity
9 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
2 min
Automatic battery test
Yes
Design
Form factor
Rackmount/Tower
Product colour
Black
Certification
TUV IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC cTUVus
Cable length
1.8 m
Operational conditions
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
CE
Weight & dimensions
Weight
26.9 kg
Width
522 mm
Height
86.2 mm
Depth
441 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Certificates
Certification
TUV IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC cTUVus
Packaging content
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
