Performance | |
---|---|
Product type | Video collaboration bar |
Tilt angle range | -105 - 105° |
Pan range | -180 - 180° |
Product colour | Black |
Wall mountable | Yes |
Signal-to-Noise Ratio (SNR) | 96 dB |
PTZ control | Yes |
Noise level | 120 dB |
Number of cameras | 1 |
Auto framing | Yes |
Auto-tracking | Yes |
Technical details | |
Product type | Video collaboration bar |
Tilt angle range | -105 - 105° |
Pan range | -180 - 180° |
Product colour | Black |
Wall mountable | Yes |
Signal-to-Noise Ratio (SNR) | 96 dB |
PTZ control | Yes |
Noise level | 120 dB |
Number of cameras | 1 |
Warranty period | 3 year(s) |
Video | |
HD type | 4K Ultra HD |
Resolution at capture speed | 960x540@30fps- 1280x720@15fps- 1280x720@30fps- 1280x720@60fps- 1600x900@30fps- 1920x1080@15fps- 1920x1080@30fps- 1920x1080@60fps- 3840x2160@15fps- 3840x2160@30fps- 3840x2160@60fps |
Optical zoom | 3x |
Digital zoom | 15x |
Video formats supported | M-JPEG- YUV- YUY2 |
Aspect ratio | 4:3- 16:9 |
Video codecs | H.264- H.265 |
Supported video modes | 360p- 480p- 540p- 720p- 900p- 1080p- 2160p |
Supported graphics resolutions | 640 x 360- 800 x 448- 848 x 480- 960 x 540- 1280 x 720 (HD 720)- 1600 x 900- 1920 x 1080 (HD 1080) |
Maximum frame rate | 60 fps |
Call recording | Yes |
HD-Ready | Yes |
Maximum video resolution | 3840 x 2160 pixels |
Streaming capability | Yes |
Audio | |
Microphone pick-up range | 8 m |
RMS rated power | 12 W |
Noise reduction | Yes |
Echo cancellation | Yes |
Built-in speaker(s) | Yes |
Automatic gain control | Yes |
Number of speakers | 2 |
File formats | |
Video formats supported | M-JPEG- YUV- YUY2 |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Headphone outputs | 1 |
USB 2.0 ports quantity | 2 |
RS-232 ports | 1 |
Microphone in | Yes |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
RJ-45 ports quantity (speaker) | 1 |
Network | |
Ethernet LAN | Yes |
Camera | |
White balance | Auto- Manual |
Focus adjustment | Auto/Manual |
Closest focusing distance | 0.8 m |
Field of view (FOV) angle | 92° |
Horizontal field of view | 84° |
Remote control interface | IR Wireless |
Gain control type | Auto/Manual |
Optical zoom | 3x |
Digital zoom | 15x |
Wide Dynamic Range (WDR) | Yes |
Number of camera presets | 10 |
3D NR (Noise Reduction) | Yes |
Diagonal field of view | 53° |
Camera type | Single camera |
Zoom capability | Yes |
Face tracking | Yes |
System requirements | |
Minimum system requirements | 3.2 GHz Intel® Core™ i5-4460 |
Minimum RAM | 4000 MB |
Minimum processor speed | 3.2 GHz |
Computer system | |
VESA mounting | Yes |
Windows operating systems supported | Yes |
Mac operating systems supported | Yes |
Minimum system requirements | 3.2 GHz Intel® Core™ i5-4460 |
Computer case | |
VESA mounting | Yes |
Operational conditions | |
Storage temperature (T-T) | -20 - 60 °C |
Storage relative humidity (H-H) | 20 - 80% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 20 - 80% |
Power | |
DC input voltage | 12 V |
AC input voltage | 100-240 V |
AC input frequency | 50/60 Hz |
Power source type | AC |
DC output voltage | 5 V |
Weight & dimensions | |
Camera dimensions (WxDxH) | 738 x 127 x 116 mm |
Package width | 872 mm |
Package depth | 197 mm |
Package height | 260 mm |
Package weight | 6.3 kg |
Camera weight | 3.1 kg |
Remote control dimensions (W x H x D) | 149.72 x 42.3 x 19.3 mm |
Remote control weight | 50 g |
Packaging content | |
Wall mounting kit | Yes |
Manual | Yes |
Remote control included | Yes |
Camera included | Yes |
Cables included | AC- USB Type-A to USB Type-B- USB Type-A to USB Type-C |
Power cable length | 3 m |

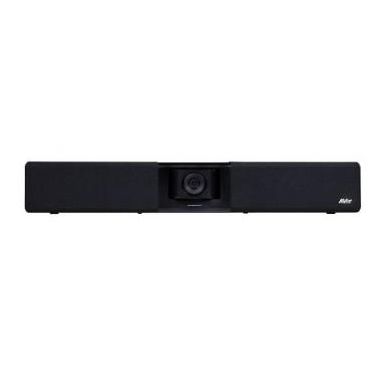

AVer VB342 Pro Video Conferencing System Ethernet System
