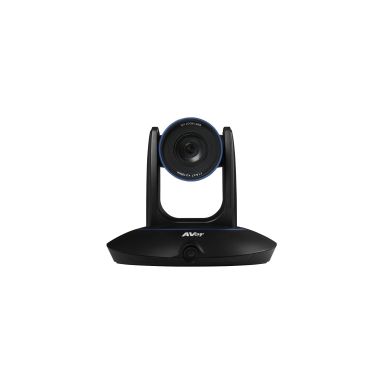

AVer PTC500S 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
In Stock
|
$4448.07
$5337.68 (Inc. VAT)
Camera
Megapixel (approx.)
2 MP
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Optical zoom
30x
Digital zoom
12x
Focal length range
4.3 - 129 mm
Field of view (FOV) angle
76°
Minimum illumination
0.23 lx
White balance
Auto, Manual
Signal-to-Noise Ratio (SNR)
50 dB
Noise reduction
Yes
Back Light Compensation (BLC)
Yes
Gain control type
Auto/Manual
Minimum working distance (wide)
0.1 mm
Maximum working distance (tele)
1.2 mm
Aperture range (F-F)
1.6 - 4.7
Auto exposure
Yes
Number of camera presets
10
Slowest camera shutter speed
0.2 s
Network streaming
Yes
Fastest camera shutter speed
1/32000 s
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
60 fps
Resolution at capture speed
1280x720@60fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps
Supported video modes
720p, 1080i, 1080p
Video formats supported
H.264
HD type
Full HD
Baud rate
115.2 Kbit/s
Design
Product colour
Black
Tilt angle range
-30 - 90°
Pan range
-175 - 175°
LED indicators
Power
Country of origin
Taiwan
Tilt speed (min)
2 °/sec
Tilt speed (max)
50 °/sec
Pan speed (min)
2 °/sec
Pan speed (max)
50 °/sec
Ports & interfaces
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
3G-SDI output
Yes
Power
DC input voltage
12 V
Power source type
DC
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 95%
Technical details
Harmonized System (HS) code
8525890000
Audio
Noise reduction
Yes
Protocols
Supported network protocols
RTSP, RTMP, ONVIF
Network
Supported network protocols
RTSP, RTMP, ONVIF
Network streaming
Yes
Packaging content
Quick start guide
Yes
Remote control included
Yes
Power supply included
Yes
Performance
Remote control function
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Logistics data
Products per pallet
48 pc(s)
Products per master (outer) case
2 pc(s)
Harmonized System (HS) code
8525890000
Weight & dimensions
Width
296 mm
Depth
250 mm
Height
256 mm
Weight
7.17 kg
Packaging data
Package width
312 mm
Package depth
286 mm
Package height
520 mm
Package weight
8 kg
AVer PTC500S 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
