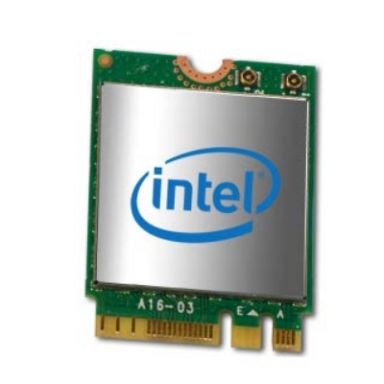

Intel 7265.NGWBNG.W network card Internal WLAN 300 Mbit/s
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Internal
Yes
Interface
WLAN
Host interface
PCI Express
Connectivity technology
Wireless
Bandwidth
Maximum data transfer rate
300 Mbit/s
Wireless LAN features
Wi-Fi band
Single-band (2.4 GHz)
Bandwidth (first)
2.4 GHz
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi
Yes
WLAN data transfer rates supported
300 Mbit/s
Antenna
Antenna
Yes
Antenna type
2x2
Technical details
Interface type
WiFi(PCIe), BT(USB)
Product colour
Green, Stainless steel
Supported Under vPro
No
Harmonized System (HS) code
8517620090
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G147045
Product type
Wireless
Processor family
Intel Wireless-AC Products
Status
Launched
Product brief URL
http://www.intel.com/content/www/us/en/wireless-products/wireless-n-7265-wbt-brief.html
Launch date
Q3'14
Network
Wi-Fi band
Single-band (2.4 GHz)
Bandwidth (first)
2.4 GHz
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi
Yes
Bluetooth version
4.2
Networking standards
IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11w
WLAN data transfer rates supported
300 Mbit/s
Maximum data transfer rate
300 Mbit/s
Bluetooth
Yes
MU-MIMO
No
Design
Product colour
Green, Stainless steel
Antenna
Yes
Certification
FIPS, FISMA
Internal
Yes
Safety
UL, C-UL, CB
Form factor
M.2 2230
Antenna type
2x2
Antenna design
Internal
Conflict-Free
Yes
Product series
Intel® Wireless Products
Product codename
Stone Peak
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Compatible operating systems
Windows 8.1, 64-bit*|Windows 8.1, 32-bit*|Windows 8, 64-bit*|Windows 8, 32-bit*|Windows 7, 64-bit*|Windows 7, 32-bit*|Windows 10, 64-bit*|Windows 10, 32-bit*|Linux*
Operational conditions
Operating temperature (T-T)
0 - 80 °C
Operating relative humidity (H-H)
50 - 90%
Maximum operating temperature
80 °C
Weight & dimensions
Width
30 mm
Depth
2.4 mm
Height
22 mm
Weight
2.4 g
Packaging data
Quantity
1
Performance
Conflict-Free
Yes
Ethernet adapter ARK ID
84178
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Supported Under vPro
No
Certificates
Certification
FIPS, FISMA
Safety
UL, C-UL, CB
Other features
Bluetooth version
4.2
Form factor
M.2 2230
Compatible operating systems
Windows 8.1, 64-bit*|Windows 8.1, 32-bit*|Windows 8, 64-bit*|Windows 8, 32-bit*|Windows 7, 64-bit*|Windows 7, 32-bit*|Windows 10, 64-bit*|Windows 10, 32-bit*|Linux*
Bluetooth
Yes
Conflict-Free
Yes
Product type
Wireless
Processor family
Intel Wireless-AC Products
Ethernet adapter ARK ID
84178
Interface type
WiFi(PCIe), BT(USB)
Supported Under vPro
No
Status
Launched
Product brief URL
http://www.intel.com/content/www/us/en/wireless-products/wireless-n-7265-wbt-brief.html
Launch date
Q3'14
Product series
Intel® Wireless Products
Product codename
Stone Peak
Harmonized System (HS) code
8517620090
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G147045
Maximum operating temperature
80 °C
Compliance
FIPS, FISMA
Antenna type
2x2
Packaging content
Quantity
1
Logistics data
Harmonized System (HS) code
8517620090
Intel 7265.NGWBNG.W network card Internal WLAN 300 Mbit/s
