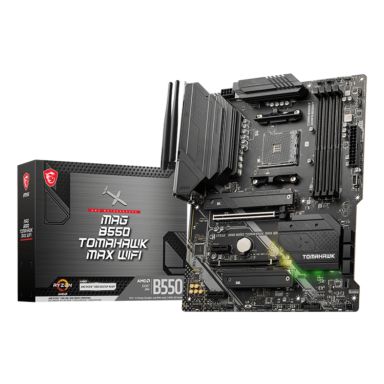

MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX
In Stock
|
$159.84
$191.81 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
TPM connector
Yes
Power fan connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
6
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Parallel processing technology support
Crossfire
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0, 1, 10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
3rd Generation AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 5 5th Gen, 3rd Generation AMD Ryzen 7, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4300,4400,4533,4600,4800,4866,5000,5100 MHz
Maximum internal memory
128 GB
Supported memory clock speed (max)
5100 MHz
Storage controllers
RAID levels
0, 1, 10
RAID support
Yes
Graphics
Parallel processing technology support
Crossfire
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
2
S/PDIF out port
Yes
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
5
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
LAN controller
Realtek RTL8125B
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC897
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
Clear CMOS jumper
Yes
Video
HDCP
Yes
DirectX version
12.0
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Drivers included
Yes
Weight & dimensions
Width
244 mm
Depth
305 mm
Packaging content
Drivers included
Yes
MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX
