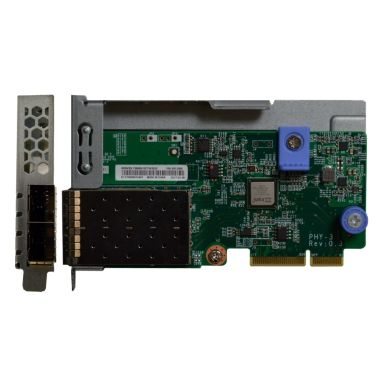

Lenovo 7ZT7A00546 network card Internal Fiber 10000 Mbit/s
In Stock
|
$528.49
$634.19 (Inc. VAT)
Ports & interfaces
Internal
Yes
Fiber ports quantity
2
Interface
Fiber
Host interface
PCI Express
Connectivity technology
Wired
Bandwidth
Maximum data transfer rate
10000 Mbit/s
Network
Chipset
Intel® C624
VLAN tagging
Yes
Jumbo frames
9728
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Security algorithms
SNMP
Networking standards
IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x
Jumbo frames support
Yes
Ethernet LAN data rates
10000 Mbit/s
Maximum data transfer rate
10000 Mbit/s
Flow control support
Yes
Antenna
Quality of Service (QoS) support
Yes
Technical details
Compatible products
SR630 SR650 SR850 SR860 SR950
Quality of Service (QoS) support
Yes
Product colour
Green, Metallic
Receive Side Scaling (RSS)
Yes
PCI-SIG* SR-IOV Capable
Yes
Number of VLANs
4096
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Data Direct I/O Technology
Yes
Harmonized System (HS) code
85176990
Sustainability certificates
RoHS
Compliance certificates
RoHS
Design
Compatible products
SR630 SR650 SR850 SR860 SR950
Product colour
Green, Metallic
Chipset
Intel® C624
Certification
UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A
Internal
Yes
Software
Other operating systems supported
VMware vSphere ESXi
System requirements
Server operating systems supported
SUSE Linux Enterprise Server 11, SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016
Other operating systems supported
VMware vSphere ESXi
Sustainability
Sustainability certificates
RoHS
Security
Security algorithms
SNMP
Performance
Server operating systems supported
SUSE Linux Enterprise Server 11, SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016
Compatible products
SR630 SR650 SR850 SR860 SR950
Security algorithms
SNMP
Other operating systems supported
VMware vSphere ESXi
Receive Side Scaling (RSS)
Yes
PCI-SIG* SR-IOV Capable
Yes
Number of VLANs
4096
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Data Direct I/O Technology
Yes
Certificates
Certification
UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A
Other features
Chipset
Intel® C624
Jumbo frames
9728
Receive Side Scaling (RSS)
Yes
PCI-SIG* SR-IOV Capable
Yes
Number of VLANs
4096
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Data Direct I/O Technology
Yes
Flow control support
Yes
Harmonized System (HS) code
85176990
Logistics data
Harmonized System (HS) code
85176990
Lenovo 7ZT7A00546 network card Internal Fiber 10000 Mbit/s
