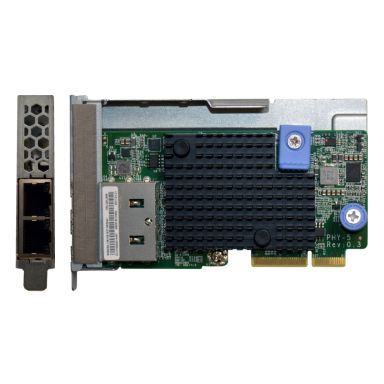

Lenovo 7ZT7A00548 network card Internal Ethernet 10000 Mbit/s
In Stock
|
$691.59
$829.91 (Inc. VAT)
Ports & interfaces
Internal
Yes
Ethernet LAN (RJ-45) ports
2
Interface
Ethernet
Host interface
PCI Express
Connectivity technology
Wired
Bandwidth
Maximum data transfer rate
10000 Mbit/s
Network
Chipset
Intel® C624
VLAN tagging
Yes
Ethernet interface type
10 Gigabit Ethernet
Jumbo frames
9728
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Security algorithms
SNMP
Cabling technology
10GBase-T
Networking standards
IEEE 802.1Q- IEEE 802.1Qbg- IEEE 802.1p- IEEE 802.3ad- IEEE 802.3x
Jumbo frames support
Yes
Ethernet LAN data rates
10000 Mbit/s
Maximum data transfer rate
10000 Mbit/s
Flow control support
Yes
Antenna
Quality of Service (QoS) support
Yes
Technical details
Compatible products
SR630 SR650 SR850 SR860 SR950
Quality of Service (QoS) support
Yes
Product colour
Green- Metallic
Receive Side Scaling (RSS)
Yes
PCI-SIG* SR-IOV Capable
Yes
Number of VLANs
4096
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Data Direct I/O Technology
Yes
Harmonized System (HS) code
85176990
Sustainability certificates
RoHS
Design
Compatible products
SR630 SR650 SR850 SR860 SR950
Product colour
Green- Metallic
Chipset
Intel® C624
Certification
UL recognized to UL60950-1 2nd Edition FCC Rules- Part 15- Class A Australian EMC Framework (RCM) VCCI- Class A Industry Canada- ICES-003- Class A EU (CE Mark) Korea KC-RRA- Class A
Internal
Yes
Software
Other operating systems supported
VMware vSphere ESXi
System requirements
Server operating systems supported
SUSE Linux Enterprise Server 11- SUSE Linux Enterprise Server 12- Windows Server 2012 R2- Windows Server 2012 R2 x64- Windows Server 2016
Other operating systems supported
VMware vSphere ESXi
Sustainability
Sustainability certificates
RoHS
Security
Security algorithms
SNMP
Performance
Server operating systems supported
SUSE Linux Enterprise Server 11- SUSE Linux Enterprise Server 12- Windows Server 2012 R2- Windows Server 2012 R2 x64- Windows Server 2016
Compatible products
SR630 SR650 SR850 SR860 SR950
Security algorithms
SNMP
Other operating systems supported
VMware vSphere ESXi
Receive Side Scaling (RSS)
Yes
PCI-SIG* SR-IOV Capable
Yes
Number of VLANs
4096
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Data Direct I/O Technology
Yes
Certificates
Certification
UL recognized to UL60950-1 2nd Edition FCC Rules- Part 15- Class A Australian EMC Framework (RCM) VCCI- Class A Industry Canada- ICES-003- Class A EU (CE Mark) Korea KC-RRA- Class A
Other features
Chipset
Intel® C624
Jumbo frames
9728
Receive Side Scaling (RSS)
Yes
PCI-SIG* SR-IOV Capable
Yes
Number of VLANs
4096
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Data Direct I/O Technology
Yes
Flow control support
Yes
Harmonized System (HS) code
85176990
Lenovo 7ZT7A00548 network card Internal Ethernet 10000 Mbit/s
