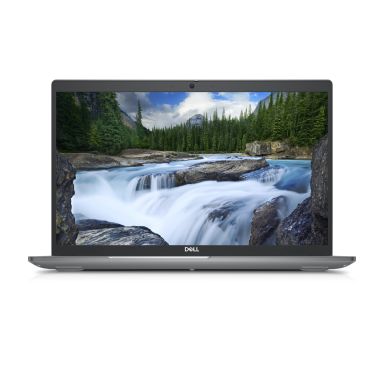

DELL Latitude 5540 Intel® Core™ i5 i5-1345U Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
In Stock
|
Call For Price
(0808 189 1246)
Design
Product type
Laptop
Form factor
Clamshell
Product colour
Grey
Intel® vPro Platform Eligibility
Yes
Display
HD type
Full HD
Pixel density
141 ppi
Panel type
IPS
LED backlight
Yes
Display brightness
250 cd/m²
Display response rise/fall
35 ms
Pixel pitch
0.179 x 0.179 mm
Contrast ratio (typical)
700:1
Touchscreen
No
Display resolution
1920 x 1080 pixels
Display diagonal
39.6 cm (15.6")
Anti-glare screen
Yes
Maximum refresh rate
60 Hz
RGB colour space
NTSC
Colour gamut
45%
Native aspect ratio
16:9
Processor
Processor generation
13th gen Intel® Core i5
Processor cache type
Smart Cache
Processor cache
12 MB
Processor model
i5-1345U
Processor boost frequency
4.7 GHz
Processor cores
10
Processor threads
12
Processor manufacturer
Intel
Processor family
Intel® Core i5
Processor base power
15 W
Maximum turbo power
55 W
Efficient-core Max Turbo Frequency
3.5 GHz
Performance-core Max Turbo Frequency
4.7 GHz
Performance cores
2
Efficient cores
8
Memory
Memory form factor
SO-DIMM
Internal memory
16 GB
Memory layout (slots x size)
2 x 8 GB
Internal memory type
DDR4-SDRAM
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Memory channels
Dual-channel
Non-ECC
Yes
Memory data transfer rate
3200 MT/s
Storage
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
PCI Express
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Total storage capacity
512 GB
Total SSDs capacity
512 GB
SSD performance class
35
NVMe
Yes
Graphics
Discrete graphics card
No
On-board graphics card family
Intel Iris Xe Graphics
On-board graphics card
Yes
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
Audio
Number of microphones
2
Audio system
MaxxAudio
Number of built-in speakers
2
Speakers manufacturer
Waves
Speaker power
2 W
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
2.07 MP
Front camera resolution
1920 x 1080 pixels
Video capturing speed
30 fps
Privacy camera
Yes
Privacy type
Privacy shutter
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Optical drive
Optical drive type
No
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Bluetooth
Yes
WWAN
Upgradable
Wi-Fi data rate (max)
2400 Mbit/s
Antenna type
2x2
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB Type-C DisplayPort Alternate Mode
Yes
HDMI ports quantity
1
HDMI version
2.0
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
USB Power Delivery
Yes
PowerShare
Yes
Number of USB ports with PowerShare support
1
Charging port type
USB Type-C
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Performance
Ambient light sensor
Yes
Keyboard
Pointing device
Touchpad
Numeric keypad
Yes
Keyboard backlit
Yes
Keyboard language
UK English
Software
Operating system language
German, Dutch, English, French, Italian
Operating system architecture
64-bit
Bundled software
Windows System Driver
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system installed
Windows 11 Pro
Technical details
Form factor
Clamshell
Product colour
Grey
Sustainability certificates
TCO
Processor special features
Intel® vPro Platform Eligibility
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
3
Battery capacity
54 Wh
Battery voltage
11.4 V
Fast charging
Yes
Battery weight
220 g
Power
AC adapter power
65 W
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 200 V
USB charging voltage
20,5,9,15 V
USB charging current
3.25 A
Security
Cable lock slot type
Wedge
Trusted Platform Module (TPM)
Yes
Fingerprint reader
Yes
Cable lock slot
Yes
Smart card reader
Yes
Trusted Platform Module (TPM) version
2.0
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Sustainability
Sustainability certificates
TCO
Total carbon footprint
321 kg of CO2e
Weight & dimensions
Width
357.8 mm
Depth
233.3 mm
Height (front)
2.08 cm
Height (rear)
2.28 cm
Weight
1.61 kg
Other features
Wi-Fi data rate (max)
2400 Mbit/s
Ambient light sensor
Yes
WLAN controller model
Intel Wi-Fi 6E AX211
On-board graphics card
Yes
Audio system
MaxxAudio
Anti-glare screen
Yes
Sensors
Ambient light sensor
Yes
Carbon footprint
Total carbon footprint
321 kg of CO2e
Total carbon emissions (w/o Use phase)
286 kg of CO2e
Total carbon emissions (Standard deviation)
68 kg of CO2e
PAIA version
1.3.2
Carbon emissions (Energy Usage)
36 kg of CO2e
Carbon emissions (Manufacturing)
272 kg of CO2e
Carbon emissions (Logistics)
12 kg of CO2e
Carbon emissions (End-of-Life)
2 kg of CO2e
DELL Latitude 5540 Intel® Core™ i5 i5-1345U Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
