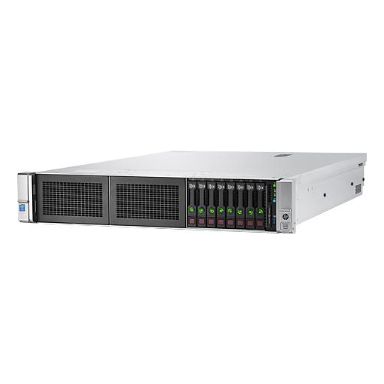

Hewlett Packard Enterprise ProLiant DL380 Gen9 2.1GHz E5-2620V4 500W Rack (2U) server
In Stock
|
Call For Price
(0808 189 1246)
Processor
Thermal Monitoring Technologies
Yes
Thermal Design Power (TDP)
85 W
Tcase
74 °C
Supported instruction sets
AVX 2.0
Stepping
R0
Scalability
2S
Processor threads
16
Processor package size
45 x 52.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Broadwell
Processor code
SR2R6
Physical Address Extension (PAE)
46 bit
Physical Address Extension (PAE)
Yes
Number of QPI links
2
Memory channels supported by processor
Quad
Memory bandwidth supported by processor (max)
68.3 GB/s
Maximum number of PCI Express lanes
40
Maximum internal memory supported by processor
1536 GB
Idle States
Yes
Execute Disable Bit
Yes
Embedded options available
Yes
ECC supported by processor
Yes
Bus type
QPI
Processor cache type
Smart Cache
Processor cache
20 MB
Conflict-Free processor
Yes
Processor frequency
2.1 GHz
Processor boost frequency
3 GHz
Number of processors installed
1
Processor model
E5-2620V4
System bus rate
8 GT/s
Processor socket
LGA 2011-v3
Processor cores
8
Processor manufacturer
Intel
Memory
Internal memory
16 GB
Memory layout (slots x size)
1 x 16 GB
Memory slots
24x DIMM
Memory clock speed
2133 MHz
Maximum internal memory
768 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
Total storage capacity
900 GB
Number of HDDs installed
3
HDD capacity
300 GB
RAID support
Yes
RAID levels
0-1-5-6-10-50-60
Optical drive type
DVD±RW
Number of HDDs supported
8
Maximum storage capacity
52 TB
HDD size
2.5"
Graphics
On-board graphics adapter
No
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
4
Expansion slots
PCI Express slots version
3
Optical drive
Optical drive type
DVD±RW
Design
Optical drive type
DVD±RW
Chassis type
Rack (2U)
Performance
Operating system installed
No
Software
Operating system installed
No
Processor special features
Intel® Identity Protection Technology (Intel® IPT)
No
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® OS Guard
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel® Secure Key
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
No
Intel Enhanced Halt State
Yes
Intel Demand Based Switching
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1
Intel Secure Key Technology version
1
Intel Identity Protection Technology version
0
Processor ARK ID
92986
CPU configuration (max)
2
Power
Number of redundant power supplies supported
2
Power supply
500 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Ethernet interface type
Gigabit Ethernet
CPU configuration (max)
2
Chassis type
Rack (2U)
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
445.5 mm
Height
87.3 mm
Depth
679.4 mm
Other features
CPU configuration (max)
2
Hewlett Packard Enterprise ProLiant DL380 Gen9 2.1GHz E5-2620V4 500W Rack (2U) server
