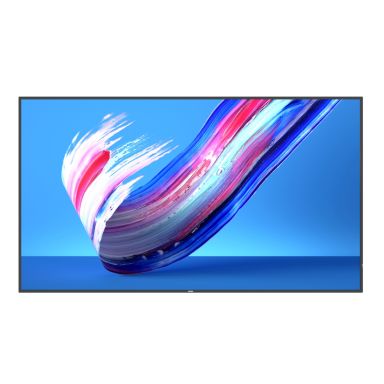

Philips 86BDL3650Q Digital signage flat panel 2.18 m (86") LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Built-in processor Android 10 18/7
In Stock
|
$3211.55
$3853.86 (Inc. VAT)
Display
LED backlight
Yes
Panel type
IPS
Display number of colours
1.07 billion colours
LED backlighting type
Direct-LED
Touchscreen
No
Display technology
LCD
Display diagonal
2.18 m (86")
Display resolution
3840 x 2160 pixels
Display brightness
400 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
1200:1
Contrast ratio (dynamic)
500000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.4935 x 0.4935 mm
Display diagonal (metric)
217.4 cm
Native aspect ratio
16:9
Native refresh rate
60 Hz
Haze rate
25%
Ports & interfaces
USB port
Yes
HDMI version
2.0
RS-232C
Yes
Infrared data port
Yes
Wi-Fi
Yes
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Yes
Ethernet LAN
Yes
HDMI ports quantity
2
DVI port
Yes
DVI-I ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
3
Audio
Number of built-in speakers
2
RMS rated power
20 W
Built-in speaker(s)
Yes
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Bezel width (top)
1.55 cm
Bezel width (side)
1.55 cm
Bezel width (bottom)
1.55 cm
Product colour
Black
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Performance
Purpose
Universal
Operating hours (hours/days)
18/7
Mean time between failures (MTBF)
50000 h
On Screen Display (OSD)
Yes
Wi-Fi
Yes
Power
Power consumption (max)
540 W
Power consumption (typical)
320 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50-60 Hz
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Processor cores
4
Processor family
ARM Cortex
Operating system installed
Android 10
Internal memory
3 GB
Internal storage capacity
16 GB
Built-in processor
Yes
Processor architecture
ARM Cortex-A55
Weight & dimensions
Display width
1929 mm
Display depth
69.5 mm
Display height
1100 mm
Display weight
49.1 kg
Packaging content
Quick start guide
Yes
Batteries included
Yes
Remote control included
Yes
Cables included
AC, IR sensor, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Technical details
VESA mounting
Yes
Panel type
IPS
LED backlighting type
Direct-LED
Thin Client
Processor family
ARM Cortex
Operating system installed
Android 10
Internal memory
3 GB
Internal storage capacity
16 GB
Packaging data
Quick start guide
Yes
Batteries included
Yes
Remote control included
Yes
Cables included
AC, IR sensor, RS-232
Other features
Panel type
IPS
Wi-Fi
Yes
Power consumption (max)
540 W
Mean time between failures (MTBF)
50000 h
Display technology
LCD
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Yes
Bezel width (top)
1.55 cm
Bezel width (side)
1.55 cm
Bezel width (bottom)
1.55 cm
Audio output
1
Audio input
1
Quick start guide
Yes
Energy efficiency scale
A to G
Philips 86BDL3650Q Digital signage flat panel 2.18 m (86") LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Built-in processor Android 10 18/7
