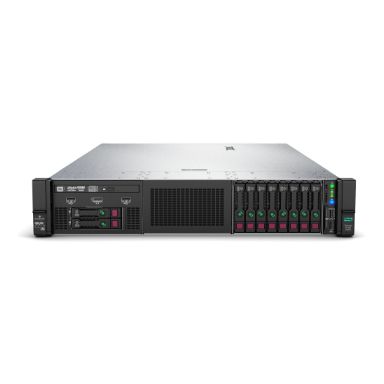

HPE ProLiant 875807-B21 DL560 Gen10 Server
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Processor
Thermal Design Power (TDP)
125 W
Tcase
87 °C
Supported instruction sets
AVXAVX 2.0AVX-512SSE4.2
Scalability
S4S
Processor threads
32
Processor package size
76 x 56.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Skylake
Number of QPI links
3
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2666 MHz
Memory channels supported by processor
Hepta
Maximum number of PCI Express lanes
48
Maximum internal memory supported by processor
768 GB
Execute Disable Bit
Yes
Embedded options available
Yes
ECC supported by processor
Yes
Processor cache type
L3
Processor cache
22 MB
Conflict-Free processor
Yes
Processor frequency
2.1 GHz
Number of processors installed
2
Processor model
6130
Processor boost frequency
3.7 GHz
Processor socket
LGA 3647
Processor cores
16
Processor family
Intel XeonÂ
Memory
Internal memory
64 GB
Memory layout (slots x size)
4 x 16 GB
Memory slots
24
Memory clock speed
2666 MHz
Maximum internal memory
1500 GB
Internal memory type
DDR4-SDRAM
Storage
Supported HDD sizes
2.5"
RAID support
Yes
Optical drive type
No
Number of HDDs supported
8
HDD interface
Serial ATASerial Attached SCSI (SAS)
Network
LAN controller
HPE FlexFabric 533FLR-T
iSCSI support
Yes
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
5
Expansion slots
PCI Express slots version
3
Optical drive
Optical drive type
No
Design
Redundant fans support
Yes
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (2U)
Operating system installed
No
Software
Compatible operating systems
Windows Server 2012 R2
Windows Server 2016
VMware ESXi 6.0 U3
VMware ESXi 6.5 and U1 upon release
Red Hat Enterprise Linux (RHEL) 6.9 and 7.3
SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2
CentOS 6.9 and 7.3
Operating system installed
No
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Turbo Boost Technology
2
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Hyper Threading Technology (Intel HT Technology)
No
Intel AES New Instructions (Intel AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Processor ARK ID
120492
Power
Number of main power supplies
2
Redundant power supply (RPS) support
Yes
Power supply
1600 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Supported HDD sizes
2.5"
Redundant fans support
Yes
Rack mounting
Yes
iSCSI support
Yes
Ethernet interface type
10 Gigabit Ethernet
Chassis type
Rack (2U)
Weight & dimensions
Width
17.5" (445.5 mm)
Weight
75.2 lbs (34.1 kg)
Height
3.44" (87.5 mm)
Depth
29.7" (754.7 mm)
Other features
iSCSI support
Yes
HPE ProLiant 875807-B21 DL560 Gen10 Server
| Length | 75.47 cm |
| Width | 44.55 cm |
| Height | 8.75 cm |
| Weight | 34.110000 kgs |
