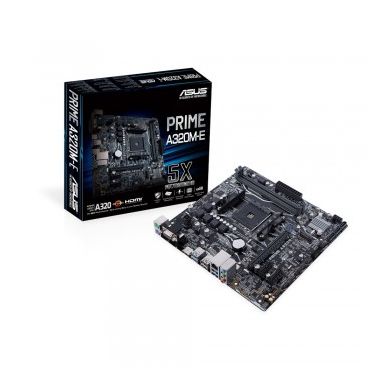

ASUS PRIME A320M-E motherboard Socket AM4 Micro ATX AMD A320
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Front panel connector | Yes |
| Audio connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of EATX power connectors | 1 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A320 |
| HDMI version | 1.4b |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Windows operating systems supported | Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A320 |
| RAID levels | 0-1-10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD A- AMD Athlon- AMD Athlon X4- AMD Ryzen 3- 2nd Generation AMD Ryzen™ 3- AMD Ryzen 3 3rd Gen- AMD Ryzen 5- 2nd Generation AMD Ryzen™ 5- 3rd Generation AMD Ryzen 5- AMD Ryzen 7- 2nd Generation AMD Ryzen™ 7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9 |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133-2400-2666-2933-3200 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| RAID levels | 0-1-10 |
| Graphics | |
| Maximum graphics adapter memory | 2048 MB |
| Maximum resolution | 4096 x 2160 pixels |
| Graphics adapter family | AMD |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| HDMI version | 1.4b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A320 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC887 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 6.1 |
| Clear CMOS button | Yes |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum graphics adapter memory | 2048 MB |
| Maximum resolution | 4096 x 2160 pixels |
| Graphics adapter family | AMD |
| Software | |
| Windows operating systems supported | Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64 |
| Drivers included | Yes |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 221 mm |
| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
| Cables included | SATA |
ASUS PRIME A320M-E motherboard Socket AM4 Micro ATX AMD A320
