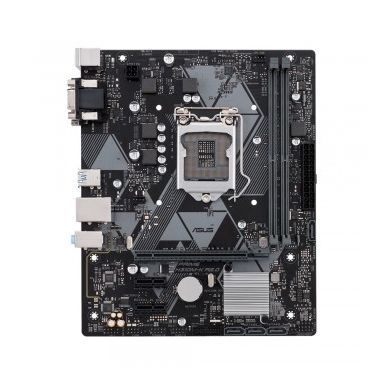

ASUS PRIME H310M-K R2.0 motherboard LGA 1151 (Socket H4) Micro ATX Intel H310
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel® H310
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
HDD size
2.5/3.5"
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64
Motherboard chipset family
Intel
Motherboard chipset
Intel® H310
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Intel Core i3/i5/i7/i9 series
i3-8xxx-i5-8xxx-i7-8xxx
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel Core i5- Intel Core i7- Intel® Pentium®
Maximum number of SMP processors
1
Processor socket
LGA 1151 (Socket H4)
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666 MHz
Unbuffered memory
Yes
Storage controllers
Number of HDDs supported
4
HDD size
2.5/3.5"
Supported storage drive types
HDD & SSD
Internal I/O
Front panel connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
S/PDIF in connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64
Motherboard chipset family
Intel
Motherboard chipset
Intel® H310
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
16 Mbit
ACPI version
6.1
System Management BIOS (SMBIOS) version
3.1
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64
Drivers included
Yes
Weight & dimensions
Width
226 mm
Depth
185 mm
Packaging content
Manual
Yes
Drivers included
Yes
Cables included
SATA
Other features
HDD size
2.5/3.5"
S/PDIF in connector
Yes
ASUS PRIME H310M-K R2.0 motherboard LGA 1151 (Socket H4) Micro ATX Intel H310
