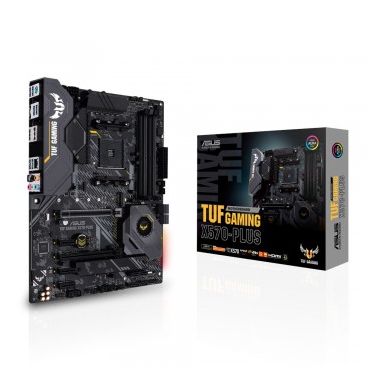

ASUS TUF Gaming X570-Plus motherboard Socket
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
8
Number of EATX power connectors
1
Number of COM connectors
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
Parallel processing technology support
CrossFireX
HDMI version
1.4b
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64-Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
RAID levels
0-1-10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
2nd Generation AMD Ryzen⢠3- AMD Ryzen 3 3rd Gen- 2nd Generation AMD Ryzen⢠5- 3rd Generation AMD Ryzen 5- 2nd Generation AMD Ryzen⢠7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0-1-10
Graphics
Parallel processing technology support
CrossFireX
Maximum resolution
4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
S/PDIF out port
Yes
PS/2 ports quantity
1
HDMI version
1.4b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek L8200A
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64-Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC S1200A
Expansion slots
Number of M.2 (M) slots
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
6.2
System Management BIOS (SMBIOS) version
3.2
Video
Maximum resolution
4096 x 2160 pixels
Software
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64-Windows 10 x64
Drivers included
Yes
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Quick installation guide
Yes
Drivers included
Yes
Cables included
SATA
Other features
Quick installation guide
Yes
ASUS TUF Gaming X570-Plus motherboard Socket
