Technical details | |
---|---|
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z490 |
Motherboard form factor | Extended ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z490 |
Audio output channels | 7.1 channels |
Motherboard form factor | Extended ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Processor socket | LGA 1200 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Maximum internal memory | 128 GB |
Storage controllers | |
Supported storage drive interfaces | M.2- SATA |
Internal I/O | |
Thunderbolt headers | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
Supported storage drive interfaces | M.2- SATA |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
Number of SATA connectors | 8 |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
USB 2.0 ports quantity | 2 |
S/PDIF out port | Yes |
Headphone outputs | 5 |
Ethernet LAN (RJ-45) ports | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | Yes |
LAN controller | Aquantia AQC107 |
Ethernet interface type | 2.5 Gigabit Ethernet |
Features | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z490 |
Audio output channels | 7.1 channels |
Motherboard form factor | Extended ATX |
Component for | PC |
Harmonized System (HS) code | 84733020 |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 2 |
BIOS | |
BIOS type | UEFI AMI |
BIOS memory size | 512 Mbit |
Clear CMOS button | Yes |
Weight & dimensions | |
Width | 305 mm |
Depth | 277 mm |

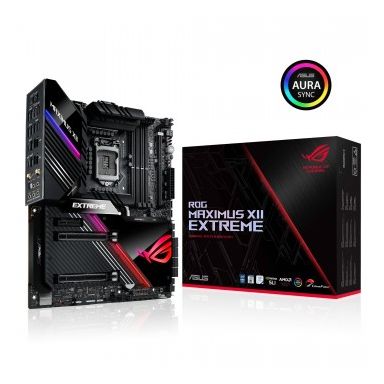

ASUS ROG MAXIMUS XII EXTREME Z490 LGA 1200 ATX Intel Z490
