Internal I/O | |
---|---|
Number of M.2 (M) slots | 2 |
Thunderbolt headers | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Supported storage drive interfaces | M.2-SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 6 |
Number of EATX power connectors | 1 |
Number of chassis fan connectors | 3 |
Front panel audio connector | Yes |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel W480 |
Parallel processing technology support | 3-Way CrossFireX |
HDMI version | 1.4b |
Motherboard form factor | ATX |
Component for | PC |
Audio | |
Audio output channels | 8.0 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel W480 |
RAID levels | 0-1-5-10 |
Audio output channels | 8.0 channels |
Motherboard form factor | ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®- Intel® Xeon® |
Processor socket | LGA 1200 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 2133-2400-2600-2800-2933-3000-3200-3300-3333-3400-3466-3600-3733-3866-4000-4133-4266-4400-4500-4600-4800 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2-SATA III |
RAID levels | 0-1-5-10 |
Graphics | |
Parallel processing technology support | 3-Way CrossFireX |
Maximum resolution | 4096 x 2304 pixels |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
DisplayPort version | 1.4 |
Thunderbolt ports quantity | 2 |
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 1 |
HDMI version | 1.4b |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
DisplayPorts quantity | 2 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
LAN controller | Intel I225-LM-Realtek RTL8117 |
Ethernet interface type | 2.5 Gigabit Ethernet |
Features | |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel W480 |
Audio output channels | 8.0 channels |
Motherboard form factor | ATX |
Component for | PC |
Audio chip | SupremeFX S1220A |
Expansion slots | |
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 3 |
BIOS | |
BIOS type | UEFI AMI |
Clear CMOS jumper | Yes |
BIOS memory size | 128 Mbit |
Video | |
Maximum resolution | 4096 x 2304 pixels |
Software | |
Windows operating systems supported | Windows 10 x64 |
Weight & dimensions | |
Width | 305 mm |
Depth | 234 mm |
Packaging content | |
Cables included | SATA |

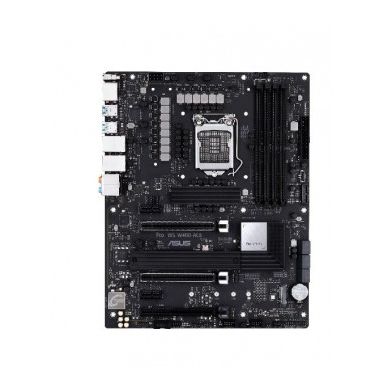

ASUS Pro WS W480-ACE LGA 1200 ATX Intel W480
