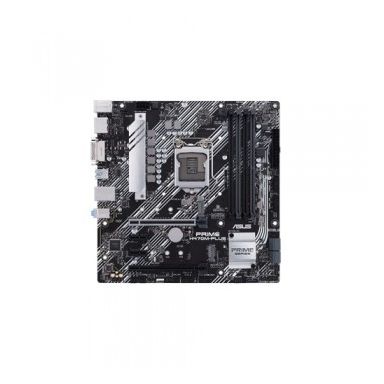

ASUS Prime H470M-PLUS LGA 1200 Micro ATX Intel H470
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
5
Number of COM connectors
1
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H470
Supported processor sockets
LGA 1200 (Socket H5)
Parallel processing technology support
2-Way CrossFireX
Cooling type
Passive
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
8 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel H470
RAID levels
0-1-5-10
Supported processor sockets
LGA 1200 (Socket H5)
Cooling type
Passive
Audio output channels
8 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Supported processor sockets
LGA 1200 (Socket H5)
Maximum number of SMP processors
1
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-5-10
Graphics
Parallel processing technology support
2-Way CrossFireX
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB 2.0 ports quantity
2
PS/2 ports quantity
1
Headphone outputs
3
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I219-V
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel H470
Supported processor sockets
LGA 1200 (Socket H5)
Cooling type
Passive
Audio output channels
8 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 slots
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
Software
Windows operating systems supported
Windows 10
Weight & dimensions
Width
244 mm
Depth
244 mm
ASUS Prime H470M-PLUS LGA 1200 Micro ATX Intel H470
