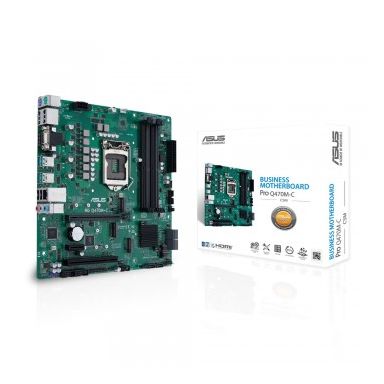

ASUS Pro Q470M-C/CSM LGA 1200 Micro ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
6
Number of COM connectors
2
Number of chassis fan connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Q470
Parallel processing technology support
Not supported
HDMI version
1.4b
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Q470
RAID levels
0-1-5-10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Maximum number of SMP processors
1
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
RAID levels
0-1-5-10
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2304 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
DisplayPort version
1.4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
HDMI version
1.4b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
LAN controller
Intel I219LM
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Q470
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
192 Mbit
Video
Maximum resolution
4096 x 2304 pixels
Software
Windows operating systems supported
Windows 10 x64
Weight & dimensions
Width
244 mm
Depth
244 mm
ASUS Pro Q470M-C/CSM LGA 1200 Micro ATX
