Internal I/O | |
---|---|
Number of M.2 (M) slots | 2 |
Front panel connector | Yes |
12V power connector | Yes |
Supported storage drive interfaces | PCI Express 3.0-SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
S/PDIF out connector | Yes |
Number of SATA III connectors | 6 |
Number of EATX power connectors | 1 |
Number of chassis fan connectors | 3 |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B460 |
Supported processor sockets | LGA 1200 (Socket H5) |
Parallel processing technology support | 2-Way CrossFireX |
HDMI version | 1.4b |
Motherboard form factor | ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B460 |
RAID levels | 0-1-5-10 |
Supported processor sockets | LGA 1200 (Socket H5) |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Supported processor sockets | LGA 1200 (Socket H5) |
Maximum number of SMP processors | 1 |
Processor socket | LGA 1200 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Maximum internal memory | 128 GB |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | PCI Express 3.0-SATA III |
RAID levels | 0-1-5-10 |
Graphics | |
Parallel processing technology support | 2-Way CrossFireX |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
DisplayPort version | 1.4 |
USB 2.0 ports quantity | 1 |
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 1 |
HDMI version | 1.4b |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DisplayPorts quantity | 1 |
Network | |
Ethernet LAN | Yes |
LAN controller | Intel® I219-V |
Ethernet interface type | Gigabit Ethernet |
Features | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B460 |
Supported processor sockets | LGA 1200 (Socket H5) |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 3 |
PCI Express x16 (Gen 3.x) slots | 1 |
BIOS | |
BIOS type | UEFI AMI |
Clear CMOS jumper | Yes |
BIOS memory size | 128000 Mbit |
Weight & dimensions | |
Width | 305 mm |
Depth | 244 mm |

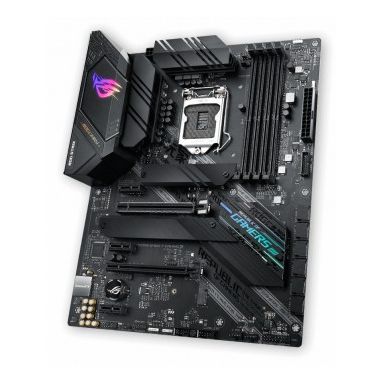

ASUS ROG STRIX B460-F GAMING LGA 1200 ATX Intel B460
