0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O | |
---|---|
Number of M.2 (M) slots | 2 |
12V power connector | Yes |
Supported storage drive interfaces | SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 6 |
Number of COM connectors | 1 |
Number of chassis fan connectors | 2 |
Front panel audio connector | Yes |
CPU fan connector | Yes |
Chassis intrusion connector | Yes |
ATX Power connector (24-pin) | Yes |
RGB LED pin header | Yes |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B460 |
Parallel processing technology support | 2-Way CrossFireX |
HDMI version | 1.4b |
Motherboard form factor | micro ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Windows operating systems supported | Windows 10 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B460 |
RAID levels | 0-1-5-10 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium® |
Maximum number of SMP processors | 1 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 2133-2400-2666-2800-2933 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | SATA III |
RAID levels | 0-1-5-10 |
Graphics | |
Parallel processing technology support | 2-Way CrossFireX |
Maximum resolution | 4096 x 2304 pixels |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
DisplayPort version | 1.4 |
USB 2.0 ports quantity | 2 |
PS/2 ports quantity | 1 |
HDMI version | 1.4b |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DVI-D ports quantity | 1 |
DisplayPorts quantity | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Wake-on-LAN ready | Yes |
LAN controller | Intel® I219-V |
Ethernet interface type | Gigabit Ethernet |
Features | |
Windows operating systems supported | Windows 10 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B460 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Component for | PC |
Audio chip | Realtek ALC S1200A |
Expansion slots | |
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 2 |
BIOS | |
BIOS type | UEFI AMI |
Clear CMOS jumper | Yes |
BIOS memory size | 128 Mbit |
Video | |
Maximum resolution | 4096 x 2304 pixels |
Software | |
Windows operating systems supported | Windows 10 |
Weight & dimensions | |
Width | 244 mm |
Depth | 244 mm |
Packaging content | |
Cables included | SATA |

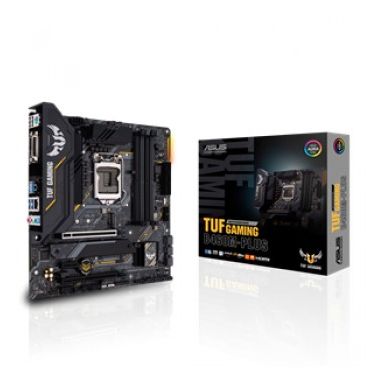

ASUS TUF GAMING B460M-PLUS Micro ATX Intel B460
