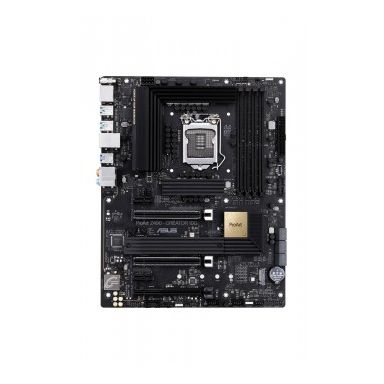

ASUS ProArt Z490-CREATOR ATX Motherboard
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported storage drive interfaces | M.2-SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| Parallel processing technology support | 3-Way CrossFireX |
| HDMI version | 1.4b |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 8.0 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| RAID levels | 0-1-5-10 |
| Audio output channels | 8.0 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium® |
| Processor socket | LGA 1200 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133-2400-2666-2800-2933-3000-3200-3300-3333-3400-3466-3600-3733-3866-4000-4133-4266-4400-4500-4600-4800 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2-SATA III |
| RAID levels | 0-1-5-10 |
| Graphics | |
| Parallel processing technology support | 3-Way CrossFireX |
| Maximum resolution | 4096 x 2304 pixels |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| Thunderbolt ports quantity | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 1.4b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I225-V |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| Audio output channels | 8.0 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | SupremeFX S1220A |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 234 mm |
| Packaging content | |
| Cables included | SATA |
