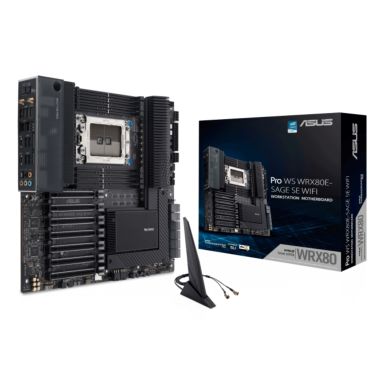

ASUS 90MB1590-M0EAY0 Workstation Motherboard
In Stock
|
$1022.49
$1226.99 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
8
Number of chassis fan connectors
6
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD WRX80
Trusted Platform Module (TPM)
Yes
Parallel processing technology support
2-Way SLI- 3-Way SLI- 4-Way SLI
Number of processors supported
1
Cooling type
Passive
Motherboard form factor
Extended ATX
Component for
PC
Performance
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD WRX80
RAID levels
0- 1- 5- 10
Trusted Platform Module (TPM)
Yes
Cooling type
Passive
Motherboard form factor
Extended ATX
Component for
PC
Processor
Processor manufacturer
AMD
Processor cores
64
Compatible processor series
AMD Ryzen Threadripper Pro 3rd Gen
Maximum number of SMP processors
1
Processor socket
Socket SP3
Processor number of cores supported
64
Memory
Number of memory slots
8
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Octa-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933-3000-3200 MHz
Maximum internal memory
2048 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Parallel processing technology support
2-Way SLI- 3-Way SLI- 4-Way SLI
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
9
VGA (D-Sub) ports quantity
1
Headphone outputs
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)
LAN controller
Intel X550-T2
Ethernet interface type
10 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD WRX80
Cooling type
Passive
Compatible operating systems
Windows 10
Motherboard form factor
Extended ATX
Component for
PC
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 slots
7
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Processor special features
Trusted Platform Module (TPM)
Yes
Software
Windows operating systems supported
Windows 10 x64
Drivers included
Yes
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
108 mm
Weight
572 g
Width
309.8 mm
Depth
330 mm
Packaging content
Drivers included
Yes
Cables included
SATA- VGA
Other features
Height
108 mm
Weight
572 g
Number of processors supported
1
Compatible operating systems
Windows 10
ASUS 90MB1590-M0EAY0 Workstation Motherboard
