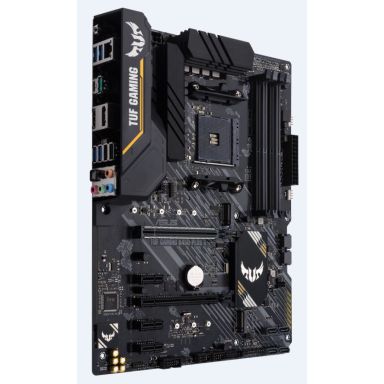

ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
In Stock
|
$117.66
$141.19 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
1
Total number of SATA connectors
6
Audio connector
Yes
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
6
Number of EATX power connectors
1
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Parallel processing technology support
CrossFireX
HDMI version
2.0b
Cooling type
Active
Motherboard form factor
ATX
Component for
PC
Total number of SATA connectors
6
Number of mounting holes
8
Audio
Audio output channels
8 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 7 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
RAID levels
0, 1, 10
Cooling type
Active
Audio output channels
8 channels
Motherboard form factor
ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Compatible processor series
3rd Generation AMD Ryzen 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3400,3466,3533,3600,3733,3866,4000,4400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA
RAID levels
0, 1, 10
Graphics
Parallel processing technology support
CrossFireX
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPort version
1.2
USB connector type
USB Type-A, USB Type-C
USB 2.0 ports quantity
2
HDMI version
2.0b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek L8200A
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Number of mounting holes
8
Windows operating systems supported
Windows 10 x64, Windows 7 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Cooling type
Active
Audio output channels
8 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC S1200A
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 2.x) slots
3
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10 x64, Windows 7 x64
Drivers included
Yes
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
